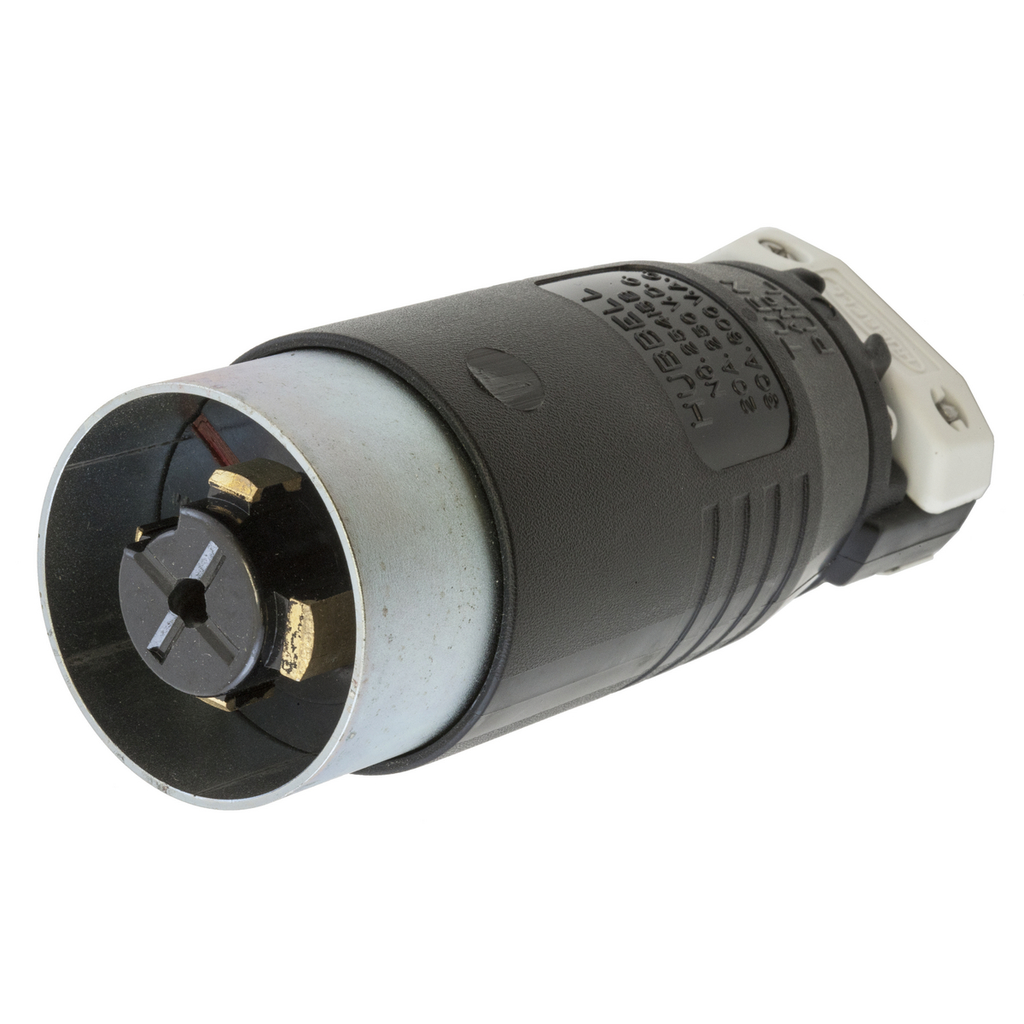

Product image for Hubbell HBL25415B 30 Amp 600 Volt 4-Pole 5-Wire Black Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL25415B 30 Amp 600 Volt 4-Pole 5-Wire Black Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL25415B | North Coast Part # 144399
$542.12/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Steel Shroud, Male Plug, 30A 600V AC, 20A 250V DC, 4-Pole 5-Wire Grounding Hubbellock® Plug, Black nylon housing, Thermoset interior, Non NEMA, Screw Terminal, Black/White

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Cord Type
All Portable
Current
20 Amp
Grounding
Grounding
Material
Composite
Mounting Type
Cord
Number of Poles
3 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA Standard,UL Standard
TC Connection
Pressure Terminal Screws
Type
Male, Straight, Industrial Grade
Voltage
250 Volt
Wire Count
5
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017488
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585017488
Product UPC
78358501748
Weight
1.4 lb

Dimensions

Height
6.56 Inch
Length
2-1/2 Inch
Width
2.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Insulated non-metallic housing enhances safety and abuse resistance
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
