Thomas & Betts E6-38 #6 AWG Wire Range 3/8 Inch Bolt Hole Non-Insulated Brazed Seam Metallic Ring Terminal

Manufacturer: Thomas & Betts | Catalog # E6-38 | North Coast Part # 145068
$478.96/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
60 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
60 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet

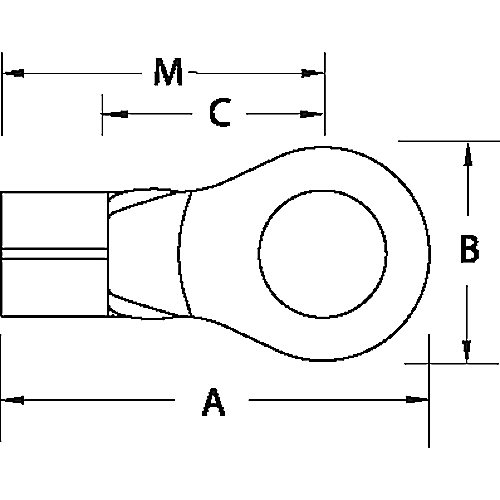

Non-Insulated Large Brazed Seam Ring Terminal, Length 1.32 Inches, Width .60 Inches, Bolt Hole 3/8 Inch, Wire Range #6 AWG, Copper, Tin Plated, 20 Pack

Technical Information

Barrel Type
Serrated
Conductor Size
6 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated - Brazed Seam
Material
Copper
Stud Size
3/8 in
Temperature Rating
150 degrees C
Terminal Type
E
Type
Short Sleeve
Voltage
600 Volt
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803593
Color
Metallic
Finish
Tin Plated
GTiN
05414363150527
Product UPC
78621080359
Used With
Round Conductors

Dimensions

Height
2.9 Inch
Thickness
.06 in
Width
1.1 in
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Certifications
  • UL
  • CSA
Notes
  • Not available on Mylar Tape.
