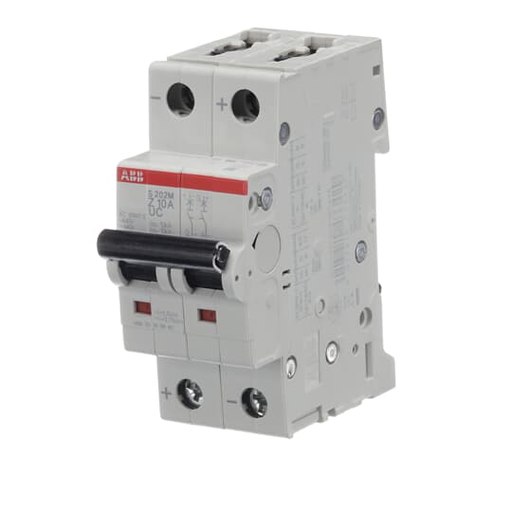

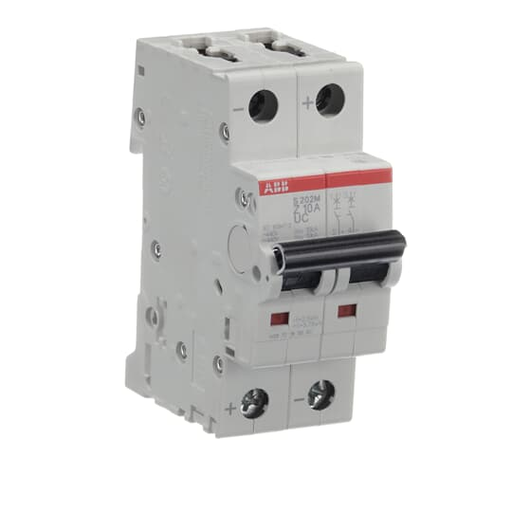

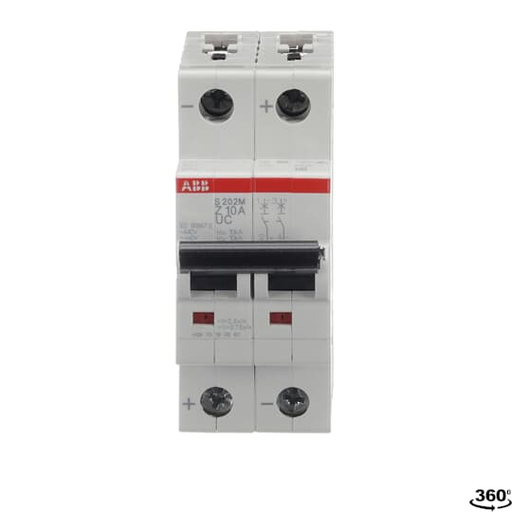

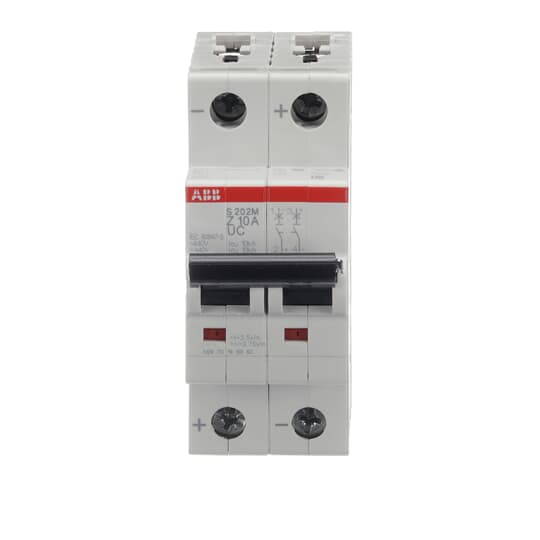

ABB S202MUC-Z10 MCB S200MUC 2P Z 10

Manufacturer: ABB Inc. | Catalog # S202MUC-Z10 | North Coast Part # 1452775
$334.50/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Miniature Circuit Breaker, Supplementary Protector, Rated Current 10 Amps, 2 Pole, Interrupt Rating 10 kA, Thermal Magnetic Trip Curve Z, Voltage up to 277/Y480 VAC, 250/500VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235

Technical Information

Amperage
10 Amp
Applications
Supplementary Protective Devices. Protection and Control of the Electronic Circuits Against Weak and Long Duration Overloads and Short-Circuits.
Interrupt Rating
10 kAIC
Number of Poles
2 Pole
Operating Temperature
-25 To 55 degrees C
Standard
CSA 22.2 No. 235,EN 60947-2,IEC,UL 1077
Trip Type
Z
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
250/500 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614275041
Box Quantity
5
GTiN
04013614433429
Product UPC
88861427504

Dimensions

Height
88 mm
Length
69 mm
Width
35 mm

Certifications & Compliance

Green Distribution CO2
0.024 kg
Green End-of-Life CO2
0.275 kg
Green Manufacturing CO2
2.968 kg
Green Total CO2
25.895 kg
Green Transport-to-DC CO2
0.201 kg
Green Use-Phase CO2
22.427 kg
