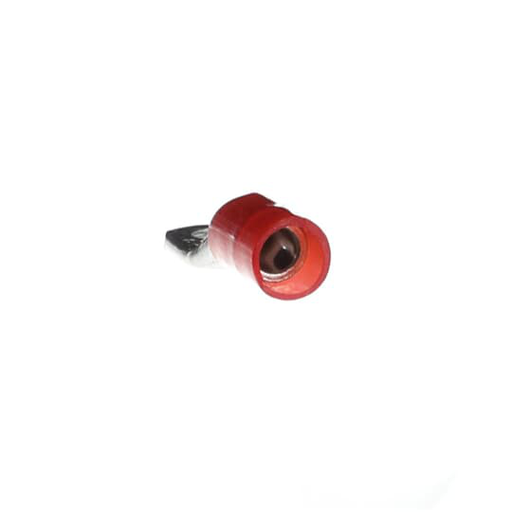

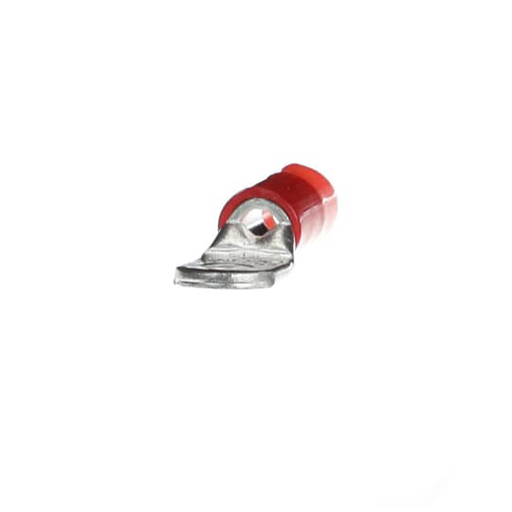

Thomas & Betts RD10361 8 AN #10 Stud Red Nylon Insulation Ring Terminal

Manufacturer: Thomas & Betts | Catalog # RD10361 | North Coast Part # 14653
$542.22/c (100 ea)
ea
Order in multiples of 200 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Nylon Insulated Large Ring Terminal, Length 1.40 Inches, Width .41 Inches, Maximum Insulation .270, Bolt Hole #10, Wire Range 8AN, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed/Overlapping Seam
Conductor Size
8 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Type
Large
Voltage
600 Volt
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210830346
Color
Red
Environmental Conditions
UL94 V-2 Flammability
Finish
Tin Plated
GTiN
05414363159650
Product UPC
78621083034

Dimensions

Length
1.4 Inch
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • Not available on Mylar Tape.
