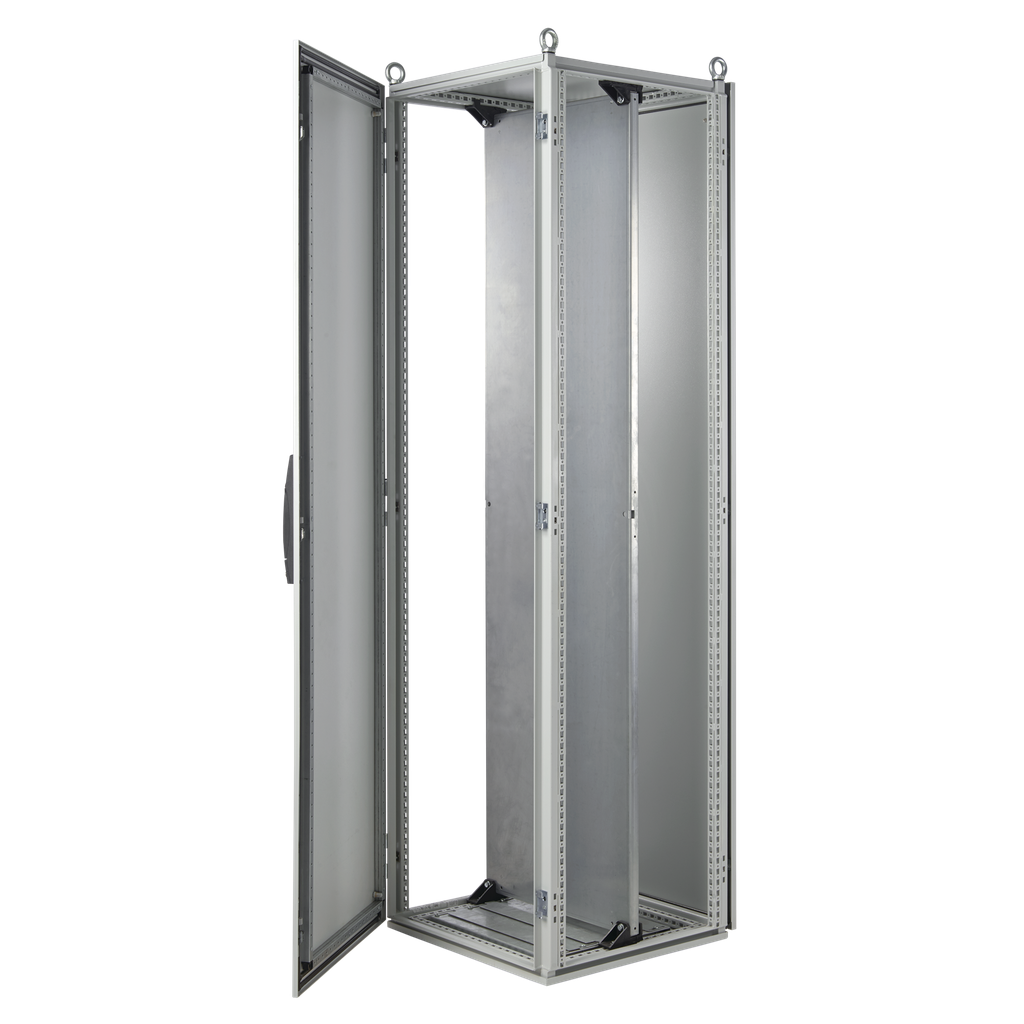

Product image for NVENT HOF P2K18105 PKG 1800x1000x50
Email

NVENT HOF P2K18105 PKG 1800x1000x50

Manufacturer: nVent Hoffman | Catalog # P2K18105 | North Coast Part # 1467268
$3,133.36/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
ProLine G2 Industrial Packages are full-featured, ready-to-use enclosure solutions. This ProLine G2 Industrial Packages Type 12, P2K18105 item measures 1800x1000x500mm with a material of Steel colored Lt Gray.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Gauge
12
Material
Steel
Number of Doors
1
Rack Unit
38
Type
Left-Hinged, Key Lock, Single Door, Modular Industrial Package

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine G2

General Product Info

12-Digit UPC
783510319885
Color
Light Gray
Finish
Galvanized
GTiN
00783510319885
Product UPC
78351031988
Weight
391 lb

Dimensions

Depth
500 mm
Height
1800 mm
Length
26 Inch
Width
1000 mm
Features
  • 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Enclosures with a width of 1200mm or less have a single-piece rear cover, and can accommodate a fully-recessed mounting subpanel; enclosures with a width of greater than 1200mm have two rear covers that affix to a removable center upright/vertical combination, and can accommodate a mounting subpanel just front of fully-recessed position
  • Gasket is seamless polyurethane providing a water-tight, dust-tight seal against moisture and contaminants; UL component recognized, CSA compliant
  • Door bar system present on all doors (including window doors)
  • Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height; system ensures a solid and repeatable seal with a low closure force
  • 2-door enclosures include overlapping double doors to provide full-width open front, with a secondary door that latches with two levers
  • Reversible hinging on single doors (default left hinge), and on overlapping double doors (default right door primary door)
  • Two grounding studs present on each door
  • Low-Profile Flush Swing Handle with key lock on standard versions; double bit lock on 'E' versions; other handle options available (sold separately)
  • Galvanized Duro-Stand Gland Plate present
  • Mounting subpanel includes EZ-Load Glide Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame); Subpanel is securely fastened to the top and bottom of the frame.
  • Enclosures <1200 mm use 4 sets of EZ-Load Glide Blocks; enclosures ?1200 mm use 8 sets of glide blocks for a well-secured subpanel
  • Galvanized, full-height subpanel is supplied standard; subpanel is depth adjustable, with back-to-back subpanel configuration possible; white painted subpanel available (sold separately)
  • Refer to separate specifications for more complete details of individual components
  • Note that side covers are sold separately
