Thomas & Betts 2RA18XCP 22-18 AWG Expanded Insulated Vinyl Butt Splice

Manufacturer: Thomas & Betts | Catalog # 2RA18XCP | North Coast Part # 147708
$299.06/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

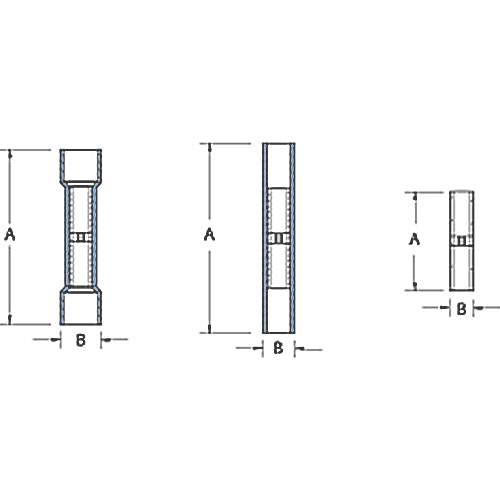

Expanded Vinyl-Insulated Butt Splice, Length 1.13 Inches, Width .25 Inches, Maximum Insulation Diameter .170, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, Mini-Pack

Technical Information

Conductor Size
22-18 AWG
Contact Material
Copper
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Standard
CSA,E2186,UL
Temperature Rating
105 degrees C
Type
Expanded
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210899350
Color
Red
Finish
Electro-Tin Plated
GTiN
00786210899350
Product UPC
78621089935
Features
  • In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size.
