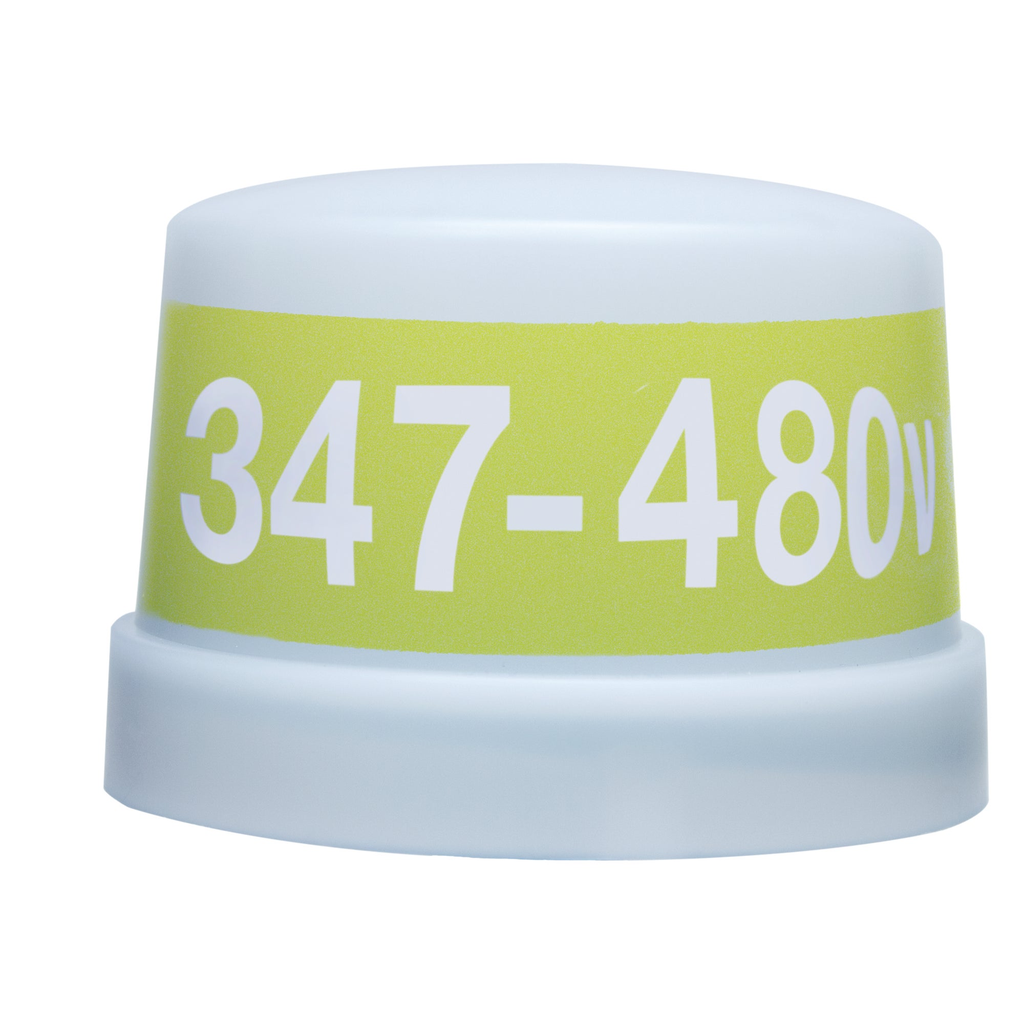

Product image for INT-MAT EK4537 NIGHTFOX Select Grad
Email

INT-MAT EK4537 NIGHTFOX Select Grad

Manufacturer: Intermatic | Catalog # EK4537 | North Coast Part # 1478373
$73.70/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.

Technical Information

Amperage
6 Amp
Applications
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway Lighting, Landscape Lighting
Enclosure Rating
3
Enclosure Type
NEMA 3, NEMA 410
Input Voltage
347-480 V
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C
Power Rating
<0.5 W at 277 VAC
Sensor Type
Photoelectric
Temperature Rating
-40 to 70 degrees C
Voltage
347-480 VAC
Wire Length
0 mm

Manufacturer Information

Brand
Intermatic
Sub Brand
NightFox™

General Product Info

12-Digit UPC
078275148970
Color
White With Yellow Band
GTiN
00078275148970
Product UPC
07827514897
Used With
High-Performance LED Fixtures
Weight
0.35 lb

Dimensions

Height
2-3/4 Inch
Warranty Length
8 yr

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • All components meet 15-year life expectancy
  • Conformal coated PCB
  • Exceeds 10,000 ON/OFF switching cycles
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 685 J MOV surge protection
  • High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
  • NA
