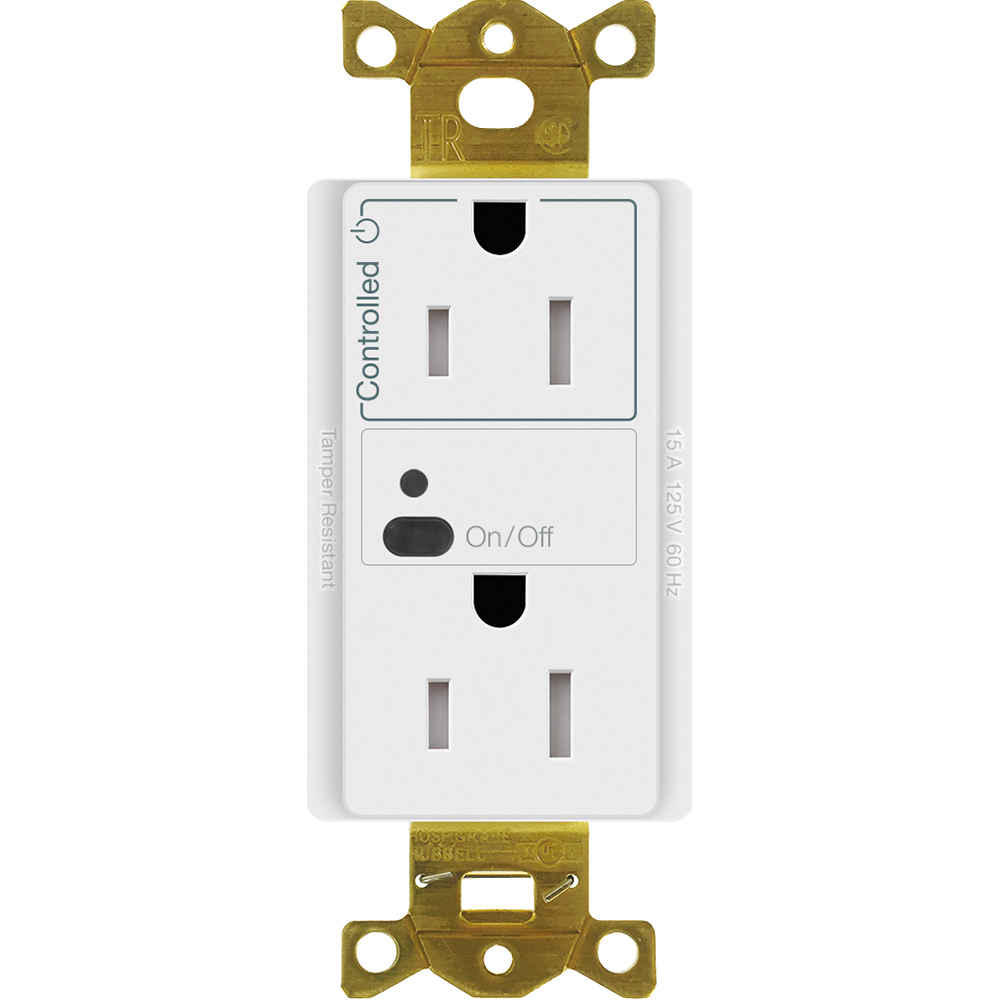

Product image for Lutron CAR2S-15-STR-WH 15A SPLIT RF RE
Image thumbnail 0
Image thumbnail 1
Email

Lutron CAR2S-15-STR-WH 15A SPLIT RF RE

Manufacturer: Lutron | Catalog # CAR2S-15-STR-WH | North Coast Part # 1478922
*Call For Price*
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Half switching. Utilizes Clear connect RF technology to communicate wirelessly to Pico wireless controls and Radio powr Savr occupancy/vacancy sensors. Capable of switching general purpose loads and downstream receptacles. 434 MHz

Technical Information

Amperage
15 Amp
Conductor Size
14-12 AWG
Connection Type
Screw-Type Terminals
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
2 Pole
Number of Wires
3,4,5 Wire
Size
75 in
Standard
CULus,FCC NOM,IFT
TC Connection
Screw terminal
Temperature Rating
122 degrees F
Type
Wireless Split Receptacle
Voltage
120 Volt
Wattage
1000 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Vive
Sub Brand
Vive

General Product Info

12-Digit UPC
784276221870
Color
White
Environmental Conditions
0 To 90% Humidity,Non-condensing
Finish
Gloss
GTiN
00784276221870
Product UPC
78427622187

Certifications and Compliance

Country of Origin
China
Features
  • Compatible with the Vive wireless hub which enables a simple setup process using a standard web browser on any Wi-Fi enabled phone, tablet, or computer. The hub enables control and monitoring of all Vive devices and can be added any time.
  • Utilizes Lutron Clear Connect RF Technology
  • Receives wireless inputs from up to 10 Pico wireless controls and 10 Radio Powr Savr occupancy / vacancy sensors
  • Capable of switching general-purpose loads
  • Capable of switching downstream receptacles
  • Adaptive Switching: maximizes relay life by switching at the point of minimum energy on the AC power curve
  • Tamper resistant
  • RoHS Compliant
  • Includes required controlled outlet labels for code compliance
  • Includes plastic screw terminal covers
  • Half switching
  • Utilizes Clear connect RF technology to communicate wirelessly to Pico wireless controls and Radio powr Savr occupancy/vacancy sensors
  • Capable of switching general purpose loads and downstream receptacles
  • 434 MHz
Standards and Certifications
  • CULUS
  • NOM
  • FCC
  • cULus
  • FCC NOM
  • IFT
