Intermatic K171H RECEPTACLE-TWIST LOCK W/DIM

Manufacturer: Intermatic | Catalog # K171H | North Coast Part # 1482060
$54.94/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet

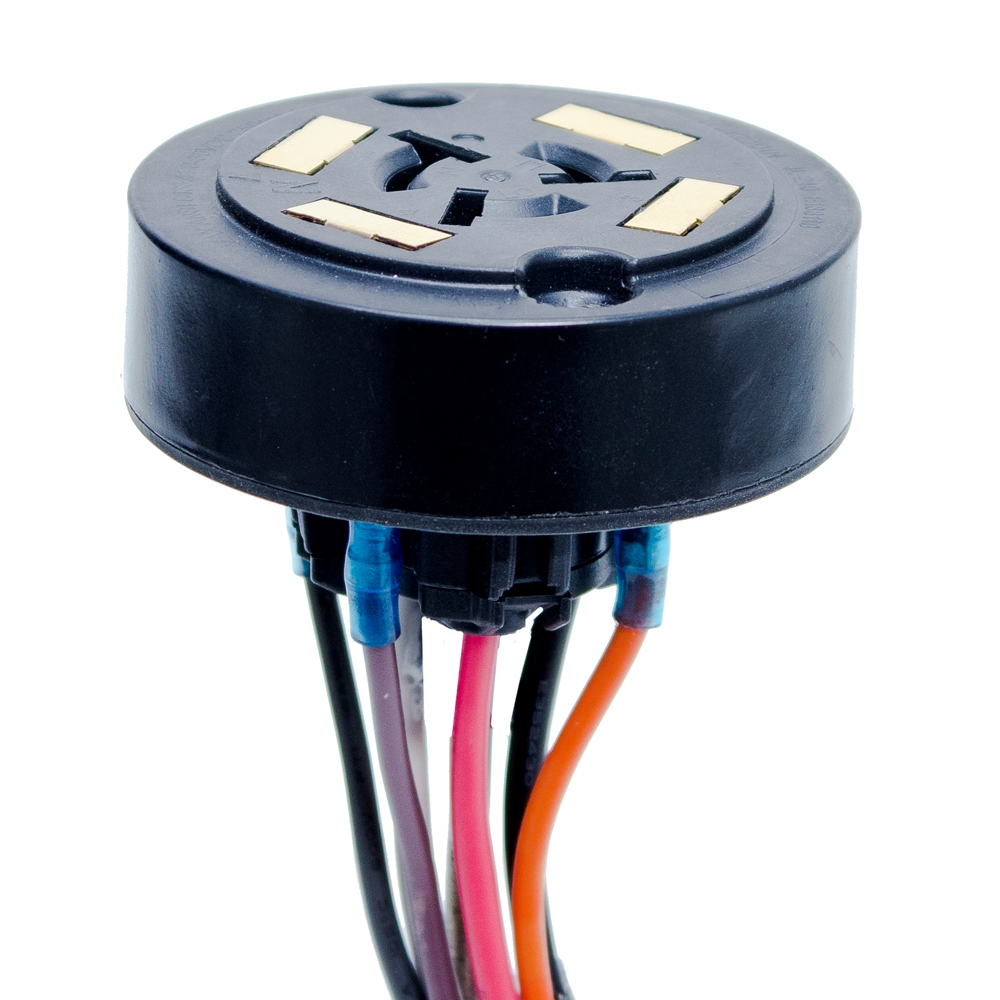

The K171H provides a receptacle for Locking Type photocontrols with dimming capabilities. The connector interface has a 3-prong power connection that is backward compatible with standard photocontrol units. Also, it offers four contact pads per ANSI C136.41 for dimming and additional control or sensor input.

Technical Information

Applications
Receptacle
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C
Operating Temperature
-40degrees F to 158degrees F
TC Connection
Color coded Leads
Type
Photocell Accessory

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275148581
Color
Black
GTiN
00078275148581
Product UPC
07827514858

Dimensions

Height
1-1/2 Inch
Warranty Length
1 yr

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
China
Features
  • NEMA receptacle with 3-prong power sockets
  • Two gold plated contact pads for dimming control signals
  • Two gold plated contact pads for extra control or sensor input signals
  • Integrated sealing gasket
  • Compliant to ANSI C136.41 specifications
  • NA
