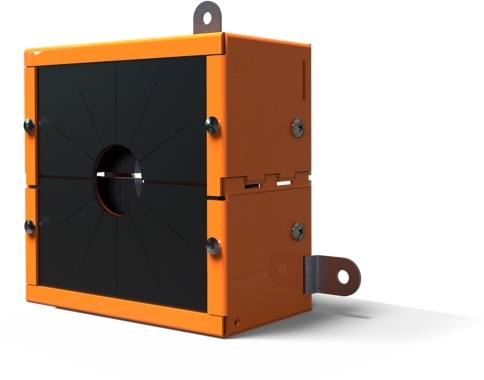

STI EZDR200 RETROFIT DEVICE

Manufacturer: Specified Technologies, Inc. | Catalog # EZDR200 | North Coast Part # 1482388
$431.26/ea
ea
Order in multiples of 4 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Non-compliant cable sleeves are the bane of every facilities team. EZ Path Retrofit Devices brings deficient openings back into code compliance quickly. The two-part clam shell design installs easily around cable sleeves to restore fire and smoke leakage performance. The EZ Path Retrofit Device retrofits cable sleeves of up to 100% visual fill, restoring fire performance without the need for additional firestop products.

Technical Information

Material
Steel

Manufacturer Information

Brand
Ez-Path

General Product Info

12-Digit UPC
730573002001
Color
Orange
Product UPC
73057300200
Weight
2.83 lb

Dimensions

Height
3.69 Inch
Length
6.31 Inch
Width
4.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • All new data comm cable penetrations shall be routed through factory supplied, maintenance-free, fire-rated pathway devices (Ex. EZ Path® Fire Rated Pathways). For existing sleeves where cable fill percentage exceeds listed system specifications, a factory-supplied, fire-rated retrofit device shall be installed. The device shall be a two-piece split design with intumescent materials and allow 50 to 100 percent visual fill. The device shall be UL Certified and tested to ASTM E814 (UL1479) and CAN/ULC-S115.
  • Sized for 2 in. and 4 in. metallic sleeves., Designed for cable sleeves and stubs., Professional fit and finish., Safety Orange for easy identification., Retrofit Device for easy code compliance.
  • Sized for 2 in. and 4 in. metallic sleeves
  • Designed for cable sleeves and stubs
  • Professional fit and finish
  • Safety Orange for easy identification
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: No
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Applications
  • Cables
  • Cable Tray
Properties
  • Finished Product
  • Intumescent
  • Low VOC
  • No Expiration Paintable Re-enterable
  • Sound Barrier
  • Zero Maintenance.
Construction Type

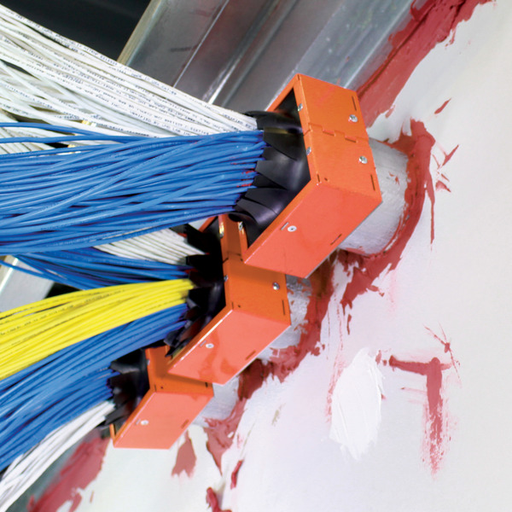

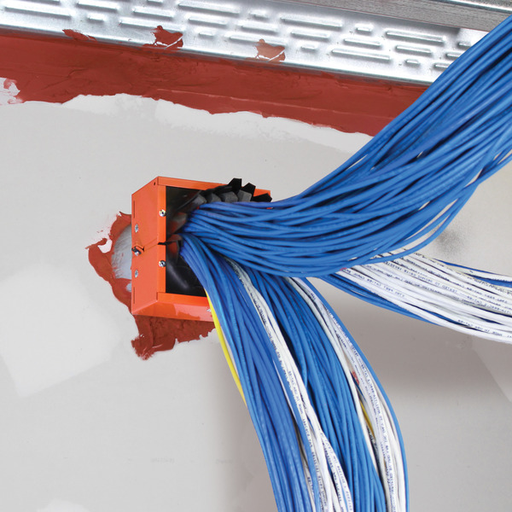

  • EZ Path Retrofit Device restores non-compliant overfilled sleeve conditions in walls and floors. Cable capacity ranges from 50 to 100% visual fill in all types of construction
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use

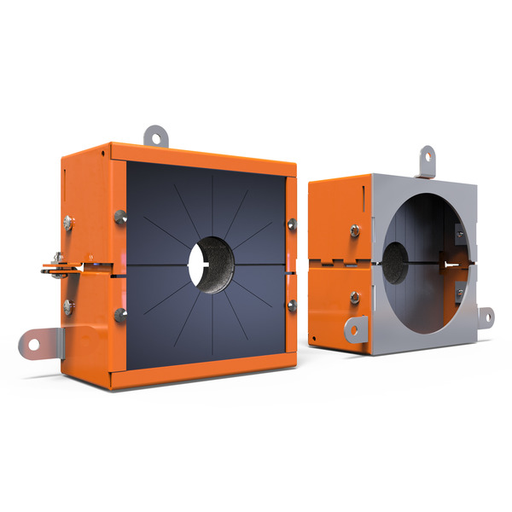

  • EZ Path Retrofit Device restores non-compliant overfilled sleeve conditions in walls and floors. Cable capacity ranges from 50 to 100% visual fill. The two-piece split device facilitates installation around existing cable bundles. The steel backplate attaches directly to the end of the steel sleeve. For flush-mounted sleeves, mounting tabs allow for attachment to the substrate.
