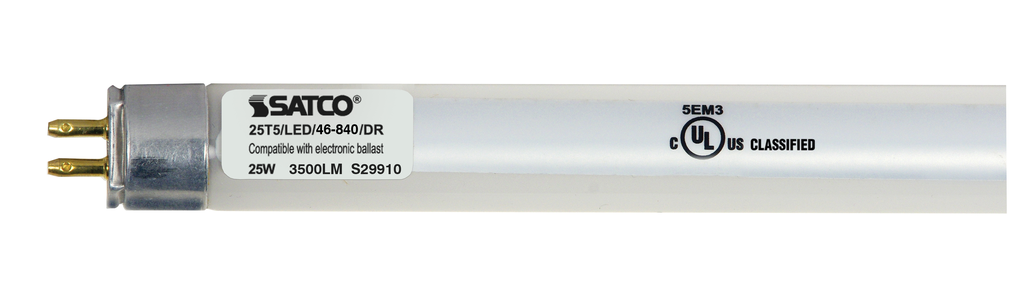

Product image for Satco S29910 25 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3500 Lumens; Type A; Ballast dependent
Email

Satco S29910 25 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3500 Lumens; Type A; Ballast dependent

Manufacturer: Satco | Catalog # S29910 | North Coast Part # 1505824
$18.44/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
25W T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3500 Lumens; Type A; Ballast dependent

Technical Information

Amperage
0.208-0.090 Amp
Average Rated Life
50000 hr
Base
Miniature Bi Pin
Beam Spread
185
Bulb Shape
T5
Color Accuracy
82
Color Rendering Index
82
Color Temperature
Cool White
Correlated Color Temp
4000 K
Dimmable?
Yes
Incandescent Equivalent
100 W
Lens Color
Gloss
Lens Material
Glass
Lumens
3,500 Lumen
Material
Aluminum
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
MOL: 48, MOD: 0.63 IN
Standard
CSA C22.2 No. 85,UL E23018,cULus
TC Connection
Miniature Bi Pin
Technology Type
LED
Temperature Rating
-20 to 45 degrees C
Type
Lamps
Voltage
Ballast Dependent Volt
Wattage
25 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923299100
Color
Gloss
Finish
Gloss
Fixture Type
Fluorescent Replacement
GTiN
00045923299100
Product UPC
04592329910
Weight
0.3 lb

Dimensions

Diameter
0.63 Inch
Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Over 50 percent Energy Savings Vs. Standard T5 Systems
  • Compatible with T5 HO Ballasts
  • Integrated Thermal Fuse at Pins
  • All Glass Tube Construction
  • Damp Location Rated
  • Enclosed Fixture Rated
  • DLC Listed
  • Light Emitting Area of 325 degrees
  • System Wattage (Type A) - 28W
Replaced By Products
  • S9710
  • S9910
Ballasting Requirements
  • Ballast required
Integrated Features
  • Integrated thermal fuse at pins
Installation Notes
  • Not for use in vapor tight fixtures.
