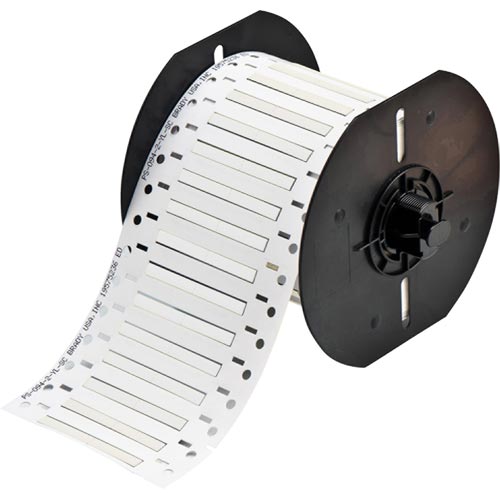

Brady B33-94-2-342-2 B33 Series PermaSleeve Single-sided Polyolefin Wire Marking Sleeves, 0.094" Dia x 1" W, White

Manufacturer: Brady | Catalog # B33-94-2-342-2 | North Coast Part # 1519866
$684.26/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet

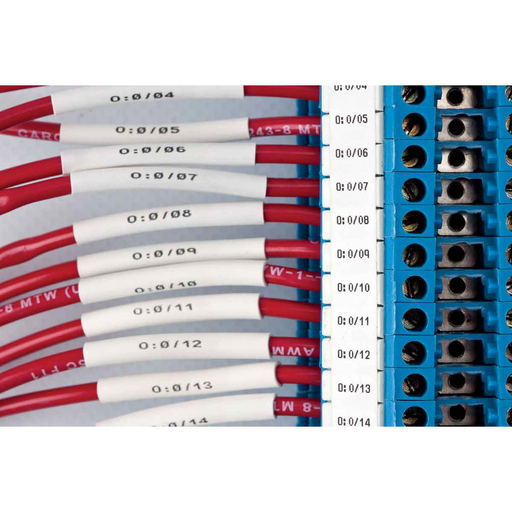

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

Technical Information

Applications
Cable & Wire Marking
Conductor Size
28-20 AWG
Material
Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Type
Heat Shrink Tubing
Wire Size
28-20 AWG

Manufacturer Information

Brand
Brady Corporation
Sub Brand
BBP®33 Series PermaSleeve®

General Product Info

12-Digit UPC
754473912581
Color
White
Finish
Matte
GTiN
00754473912581
Product UPC
75447391258

Dimensions

Diameter
0.094 Inch
Height
0.182 Inch
Roll Width
2 in
Width
25.40 mm

Certifications and Compliance

CA Prop65 Warning
Y
Features
  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
