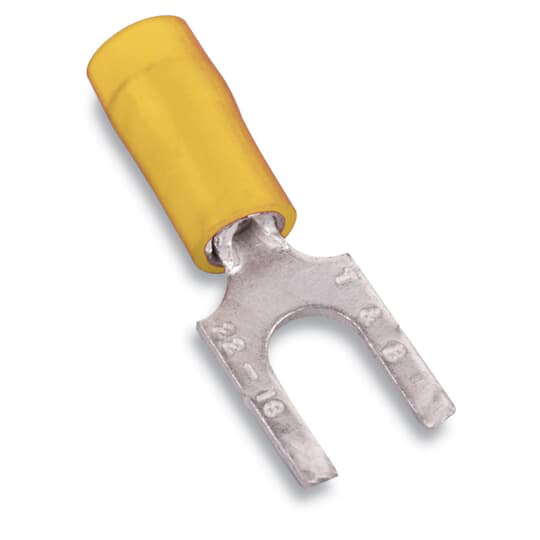

Product image for Thomas & Betts RC10-8FS 12 to 10 AWG #8 Stud Yellow Electrotinned Copper Nylon Insulated Fork Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts RC10-8FS 12 to 10 AWG #8 Stud Yellow Electrotinned Copper Nylon Insulated Fork Terminal

Manufacturer: Thomas & Betts | Catalog # RC10-8FS | North Coast Part # 152782
$531.09/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

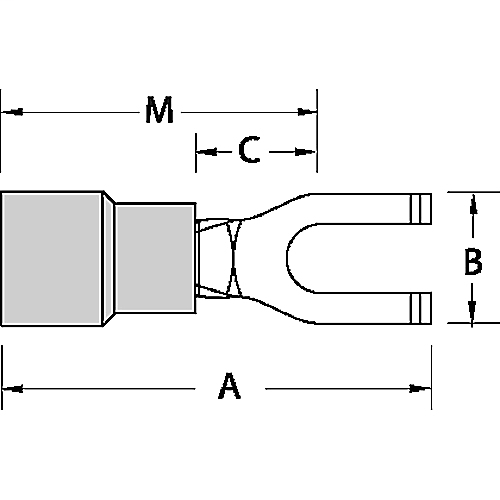

Nylon Insulated Fork Terminal with Flanged Tongue, Length .97 Inches, Width .34 Inches, Maximum Insulation .210, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
CSA,E2186,UL
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Flanged Tongue, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804361
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363933533
Product UPC
78621080436

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.3 in
Features
  • Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
Certifications
  • CSA
  • UL
