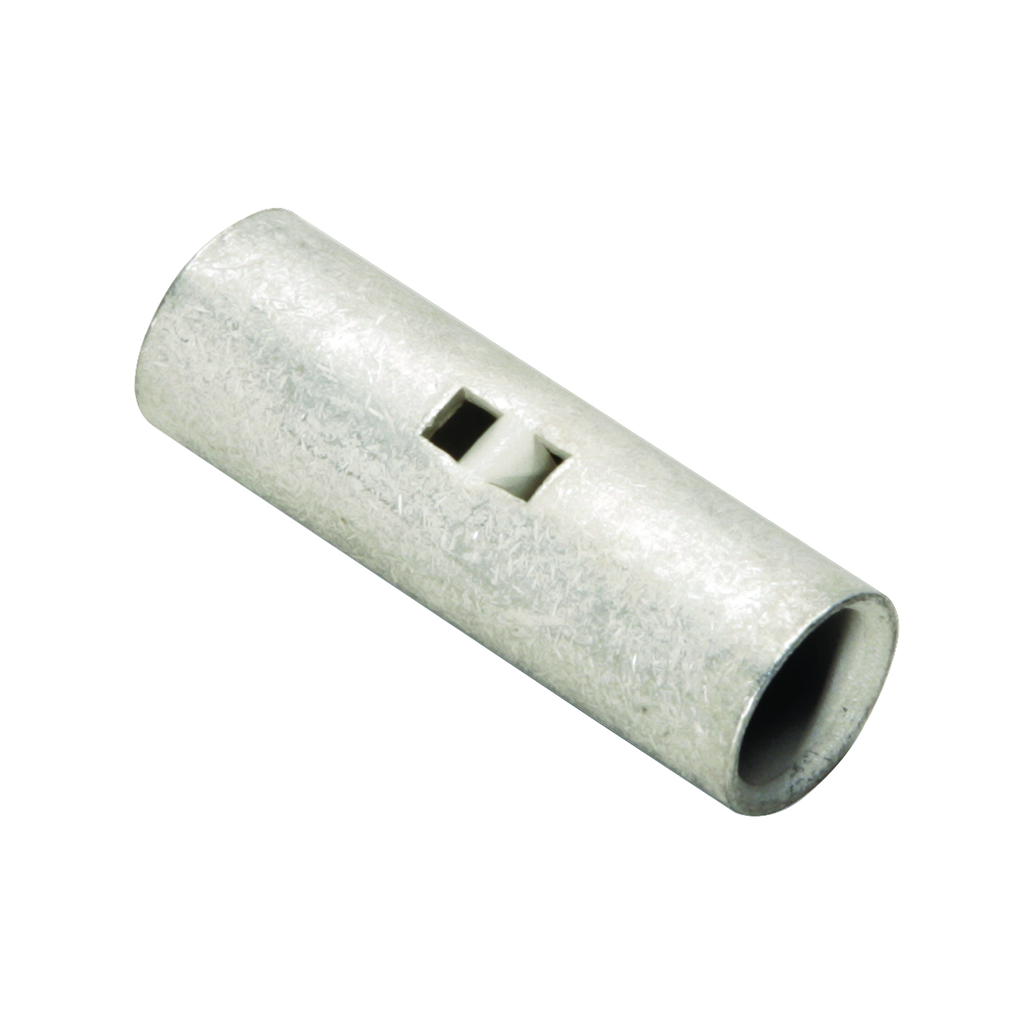

Product image for Burndy YSV10BOX HYLINK™ Uninsulated Compression Butt Splice; Accommodates: #12 - #10 AWG Str/Sol; Length: 75"; 600 V - 35kV
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy YSV10BOX HYLINK™ Uninsulated Compression Butt Splice; Accommodates: #12 - #10 AWG Str/Sol; Length: 75"; 600 V - 35kV

Manufacturer: Burndy | Catalog # YSV10BOX | North Coast Part # 15301
$95.05/c (100 ea)
Log in or register to view your price, purchase history, and more!
50 available

For Pick Up

at Auburn Closes 3:00pm PT
50 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Specification Sheet
CU Uninsulated Butt Splice, Bevelled Entry, W/InspWindow, #12-#10 Str&Sol, 600V, Tin Plated

Technical Information

Applications
For All Heavy Duty Industrial And General Purpose Applications
Conductor Size
12-10 AWG
Connection Type
Seamless Butt Splice
Insulated?
No
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin
Size
075 IN Length
Strip Length
5/16 in
Type
Splice
Voltage
35000 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810543603
Color
Black
Finish
Tin Plated
GTiN
00781810543603
Product UPC
78181054360

Dimensions

Height
0.21 Inch
Length
3/4 Inch
Overall Length
19 mm
Width
0.21 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Manufactured from seamless tubing
  • High quality design with no seams to split
  • Electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Electro-tin plating provides durable long lasting resistance to corrosion
  • Positive center wire stops for proper dept of wire insertion
  • Marked with wire size providing easy wire size identification
  • HYLINK splice connectors feature inspection holes providing easy visual inspection of proper wire insertion
