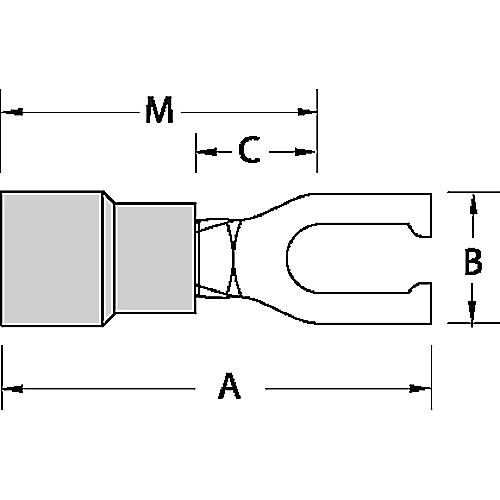

Image thumbnail 2
Email

Thomas & Betts 10RC-10FLX 12-10 AWG Wire Range Expanded Insulated Vinyl Locking Fork Terminal

Manufacturer: Thomas & Betts | Catalog # 10RC-10FLX | North Coast Part # 153664
$398.62/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Expanded Vinyl-Insulated Locking Fork Terminal, Length 1.10 Inches, Width .37 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Expanded, Locking
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210807270
Color
Yellow
Finish
Tin Plated
GTiN
05414363935803
Product UPC
78621080727
Used With
ERG4001, WT145C, WT2000, WT112M, WT145C Tools

Dimensions

Height
7.2 Inch
Length
1.1 Inch
Thickness
.04 in
Width
0.37 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Certifications
  • UL
  • CSA
