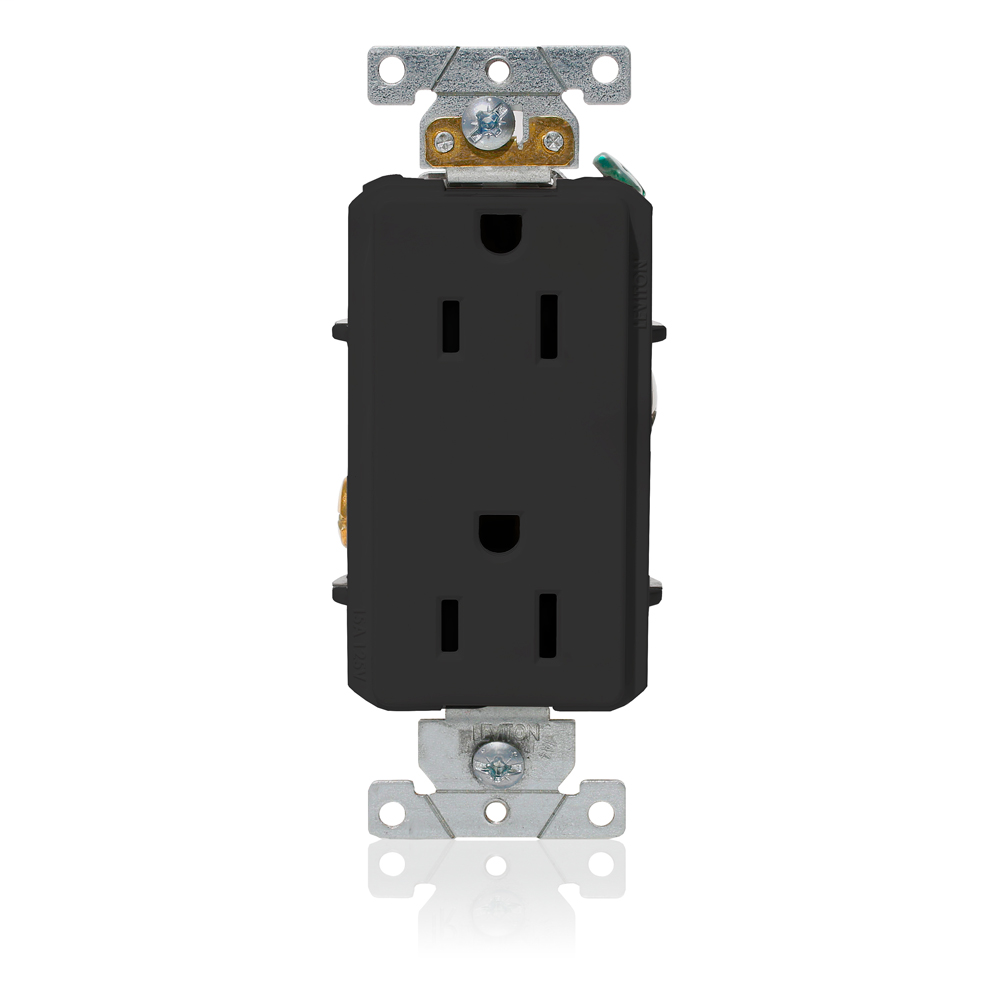

Leviton 16252-E 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Black Thermoplastic Nylon Straight Blade Duplex Receptacle

Manufacturer: Leviton | Catalog # 16252-E | North Coast Part # 153911
$10.18/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
356 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not available for delivery*
Check your local branch
Specification Sheet MDM Safety Data Sheet
Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Technical Information

Amperage
15 Amp
Applications
Commercial
Blade Dimensions
1.52 in W x 1.14 in D x 46 in H
Body Material
PBT Polyester Blend
Conductor Size
14 - 10 AWG
Connection Type
Back and Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Face Material
Polyester
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3
Operating Temperature
-40 C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73,CSA C22.2 No.42,Fed Spec W-C-596,UL 498
TC Connection
Back and Side Wired
Temperature Rating
-40 to 60 C
Temperature Rise
30 C
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Leviton
Sub Brand
Decora Plus

General Product Info

Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477837030
Product UPC
07847783703

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CULus,NON-ANCE
Country of Origin
Mexico
