ABB F975 NON-INS - TUB RING TERM, 4

Manufacturer: Thomas & Betts | Catalog # F975 | North Coast Part # 155058
$469.67/c (100 ea)
ea
Order in multiples of 200 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

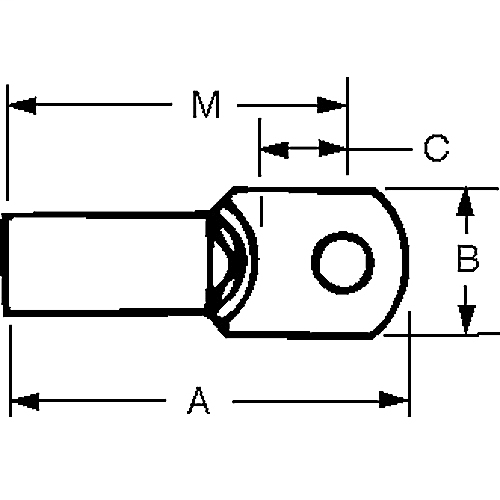

Non-Insulated Tubular Ring Terminal, Length 1.42 Inches, Width .83 Inches, Bolt Hole 1/2 Inch, Wire Range 4/4AN, Copper, Tin Plated

Technical Information

Conductor Size
4/4 AWG
Insulation Type
Non-Insulated - Tubular
Material
Copper
Number of Holes
1 Hole
Standard
UL E9809
Stud Size
1/2 in
Temperature Rating
150 degrees C
Type
Straight, Non-Insulated
Voltage
600 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210812366
Color
Metallic
Finish
Tin Plated
GTiN
05414363151326
Product UPC
78621081236
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
Notes
  • Not available on Mylar Tape.
