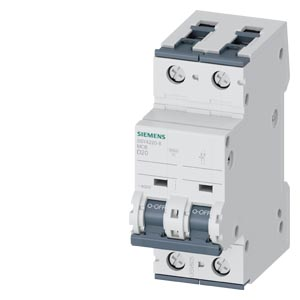

Product image for Siemens 5SY42208 5SY4 MCB, 2P,48
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens 5SY42208 5SY4 MCB, 2P,48

Manufacturer: Siemens | Catalog # 5SY4220-8 | North Coast Part # 1563253
$104.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type 5SY4 Miniature Circuit Breaker, 2 Poles, 480/277V, 20A, 5kA, standard frame, Magnetic trip point 10 to 20 In

Technical Information

Amperage
20 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
20 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
2 Pole
Short Circuit Current
5 kA
Standard
EN 60 898,CE,UL 1077,CSA 22.2 NO. 235,IEC,EN 60 947-2
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554876030
Class
D
GTiN
04001869202297
Product UPC
75455487603
Weight
0.710 lb

Dimensions

Height
3-1/4 Inch
Length
1.2 Inch
Width
2.850 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.03 kg
Green End-of-Life CO2
0.347 kg
Green Manufacturing CO2
1.209 kg
Green Total CO2
22.167 kg
Green Transport-to-DC CO2
0.253 kg
Green Use-Phase CO2
20.328 kg
