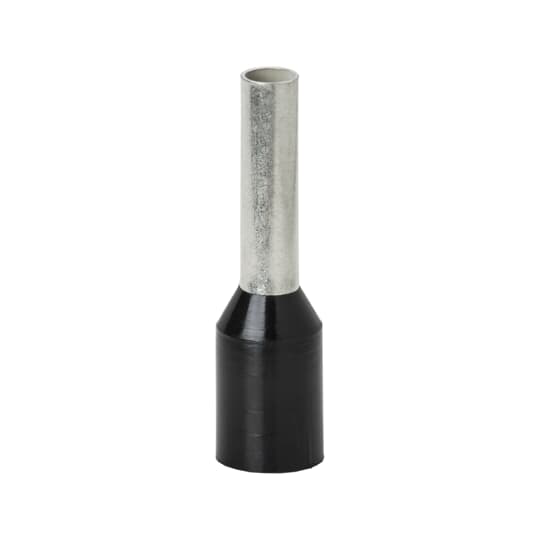

Product image for Thomas & Betts F4027 16 AWG 0.571 Inch Black Electrotinned Copper Nylon Insulated Ferrule
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts F4027 16 AWG 0.571 Inch Black Electrotinned Copper Nylon Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F4027 | North Coast Part # 15778
$79.39/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

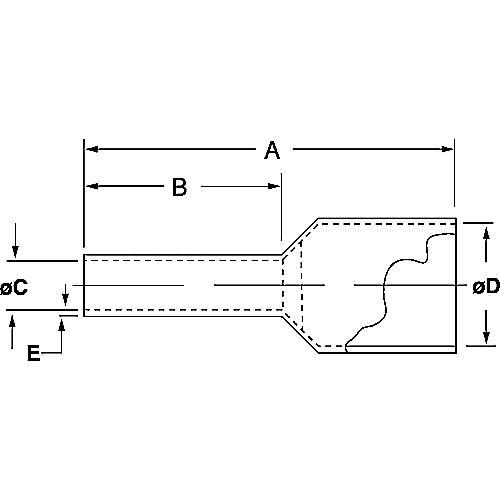

Polypropylene-Insulated Old DIN Ferrule, Total Length .571 Inches/14.5mm, Pin Length .315 Inches/8mm, Pin Diameter .071 Inches/1.8mm, Base Diameter .134 Inches/3.4mm, Wire Range #16 AWG/1.50mm2, Color Black, Copper, Tin Plated

Technical Information

Conductor Size
16 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Temperature Rating
105 degrees C
Type
Insulated
Wire Size
16 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336787
Color
Black
Finish
Electro Tin Plated
GTiN
00786210336787
Product UPC
78621033678

Dimensions

Overall Length
0.571 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
