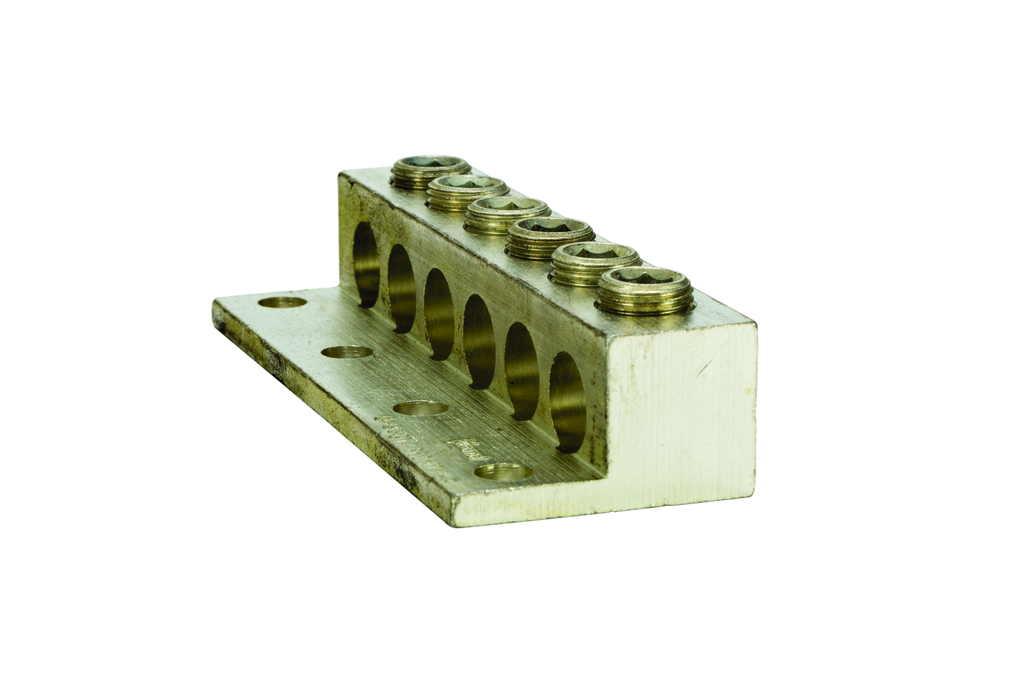

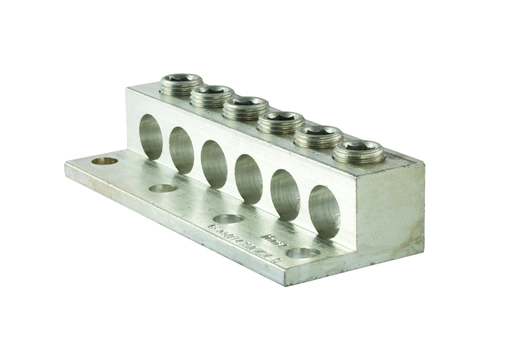

Product image for NSI 6-350T4 Trans Lug (6) 350-6 AWG
Image thumbnail 0
Image thumbnail 1
Email

NSI 6-350T4 Trans Lug (6) 350-6 AWG

Manufacturer: NSi Industries | Catalog # 6-350T4 | North Coast Part # 1587075
$80.78/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
6 Port 4 Mounting Hole Aluminum Dual Rated Transformer Lug 350 MCM - 6 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.

Technical Information

Applications
Wire Termination
Bolt Size
3/8 IN
Conductor Size
350 kcmil
Enclosure Rating
90 C
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
4
Number of Conductors
6,6
Number of Poles
1 Pole
Number of Ports
6
Temperature Rating
90 degrees C
Type
Transformer Lug
Voltage
600 Volt
Wire Size
350 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Utilities

General Product Info

12-Digit UPC
662381026934
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381026934
Product UPC
66238102693

Dimensions

Height
1-1/4 Inch
Length
2-1/4 Inch
Warranty Length
1 yr
Width
4.66 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Versatile and reusable set-screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
  • Two set-screws per wire hole ensure an exceptional connection
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • Mounting hole spacing is NEMA 1 3/4\" spacing
Certifications and Standards
  • ANSI
