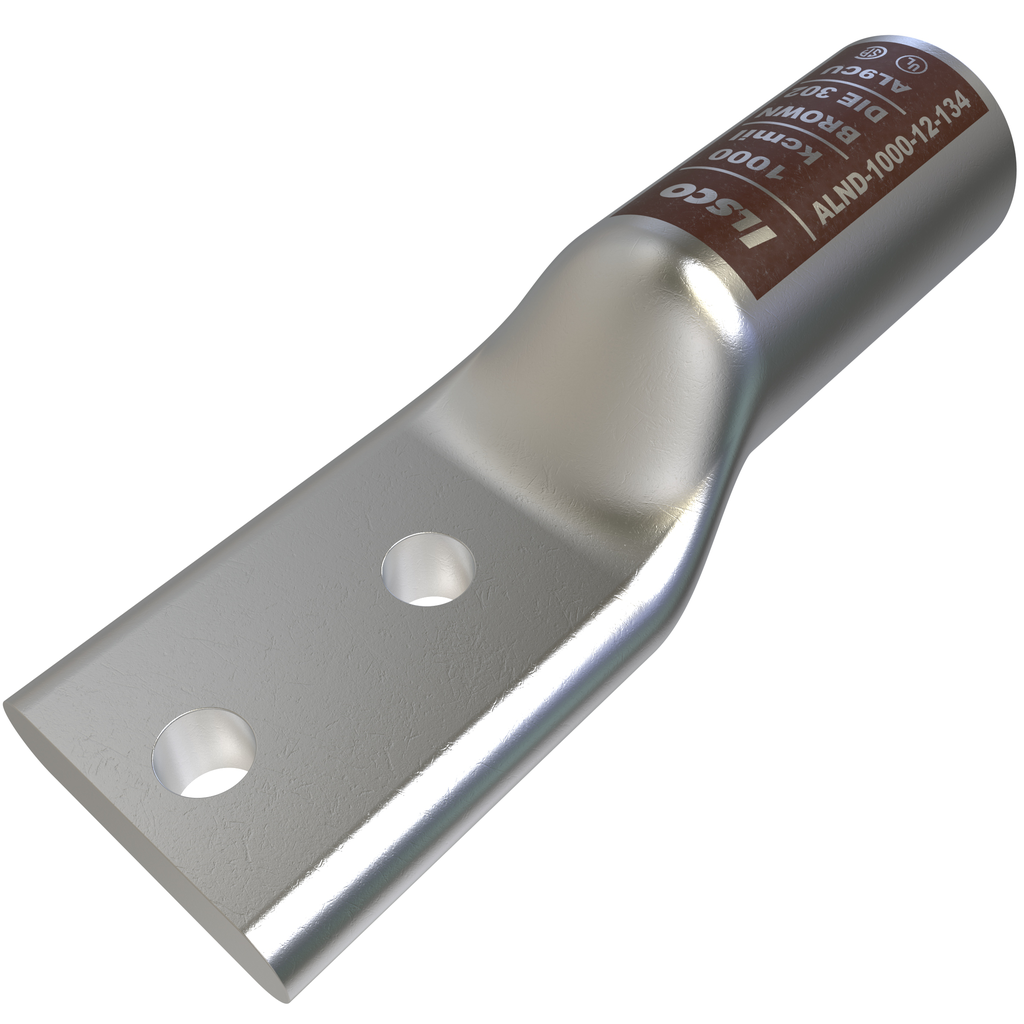

Product image for Ilsco ALND-1000-12-134 SureCrimp® Aluminum Compression Lug, Conductor Size 1000, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco ALND-1000-12-134 SureCrimp® Aluminum Compression Lug, Conductor Size 1000, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALND-1000-12-134 | North Coast Part # 1587372
$164.03/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 1000 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Brown, primary color Silver, die index P302,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
2.996 in
Barrel Type
Long
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Size
1000 MCM
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
2 Hole
Size
L:7.5;W:2.514;H:1.89 IN
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Strip Length
77.685 mm
Temperature Rating
90 degrees C
Type
ALND:2 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669687934
Color
Silver
GTiN
00783669687934
Product UPC
78366968793
Weight
1.026 lb

Dimensions

Height
1.89 Inch
Inside Diameter
1.18 in
Length
7-1/2 Inch
Outside Diameter
1.84 in
Width
2.514 in
