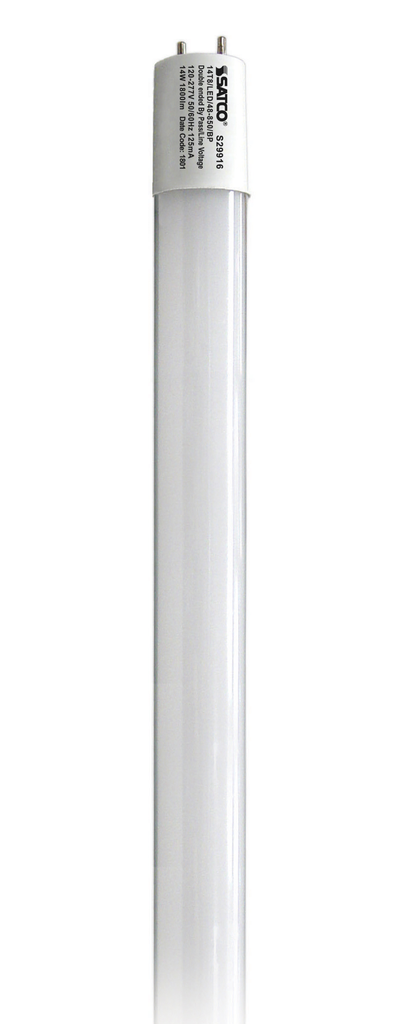

Product image for Satco S29916 14 Watt T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Double Ended Wiring
Email

Satco S29916 14 Watt T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Manufacturer: Satco | Catalog # S29916 | North Coast Part # 1592585
$9.87/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
14W T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Technical Information

Amperage
0.117-0.051 Amp
Average Rated Life
50000 hr
Base
Medium Bi Pin
Beam Angle
210
Beam Spread
210
Bulb Shape
T8
Color Accuracy
82
Color Rendering Index
82
Color Temperature
5000 K
Correlated Color Temp
5000 K
Dimmable?
No
Incandescent Equivalent
100 W
Lamp Type
Fluorescent
Lens Color
Frost
Lens Material
Glass
Lumens
18,000 Lumen
Material
Glass
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Type
Type A
Voltage
120 Volt
Wattage
14 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923299162
Finish
Frosted
GTiN
00045923299162
Product UPC
04592329916
Weight
0.52 lb

Dimensions

Diameter
1 Inch
Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures. Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets.
