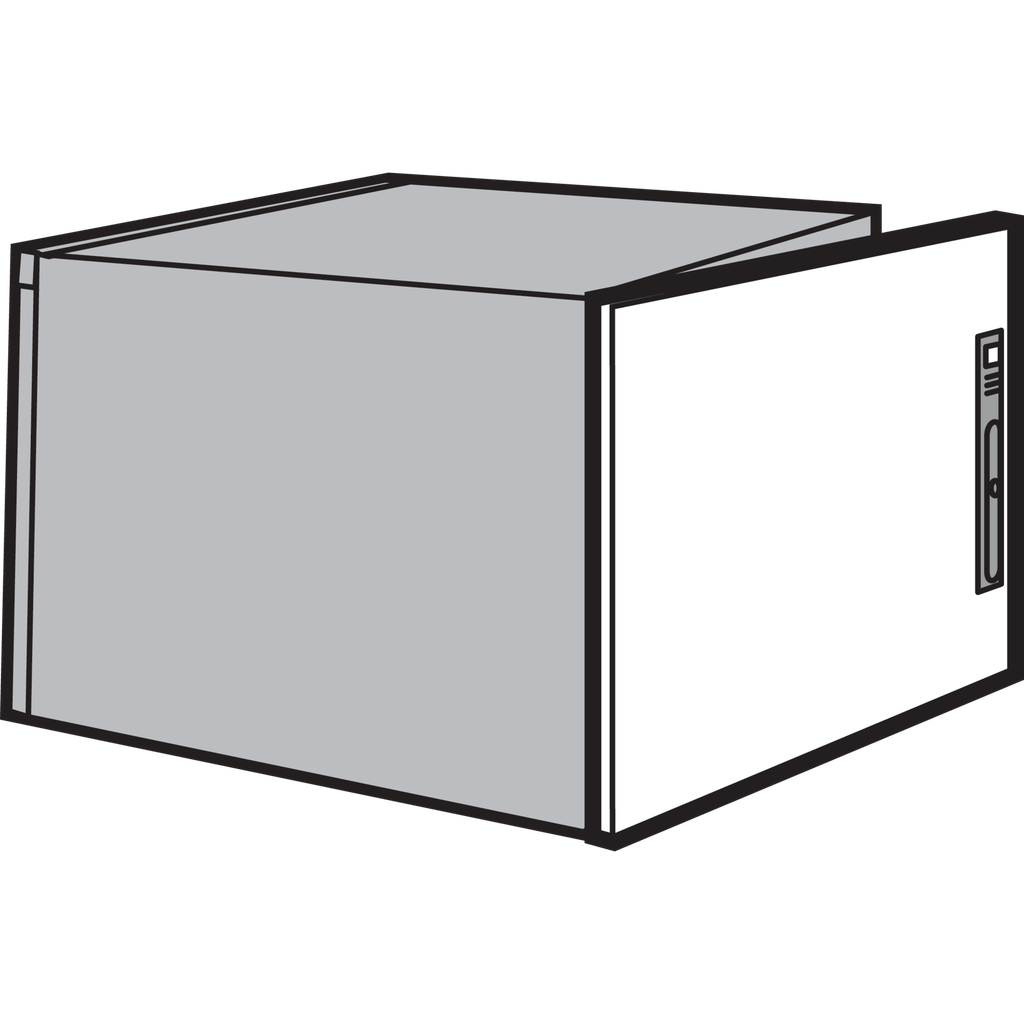

Product image for Hoffman PDS7A8R Doors for Rear of PROLINE Sloped Tops, fits 882x 800mm, Lt Gray, Steel
Email

Hoffman PDS7A8R Doors for Rear of PROLINE Sloped Tops, fits 882x 800mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # PDS7A8R | North Coast Part # 160528
$1,018.68/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Rear doors are side-hinged. The hinges are hidden and provide 130-degree door swing. Optional ProLine 180-Degree Hinge Kit is available. Doors can be hinged from left or right. Door includes two-point latching with a flush slotted quarter-turn insert. Standard ProLine handle and insert options are available for retrofit. Use ProLine Frame Shelf or ProLine Grid Straps to support the operator interface. Ground stud and mounting hardware are included. Seamless foam-in-place gasket assures a watertight and dust-tight seal.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
fits 882x800mm
Type
HMI Enclosure Systems

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510368999
Color
Light Gray
Finish
Powder Coated
GTiN
00783510368999
Product UPC
78351036899
Weight
30.5 lb

Dimensions

Depth
22.23 Inch
Height
27.56 Inch
Length
38 Inch
Thickness
1.52 mm
Width
31.5 in
Features
  • Side hinged doors with 130-degree swing
  • Seamless foam in place gasket
