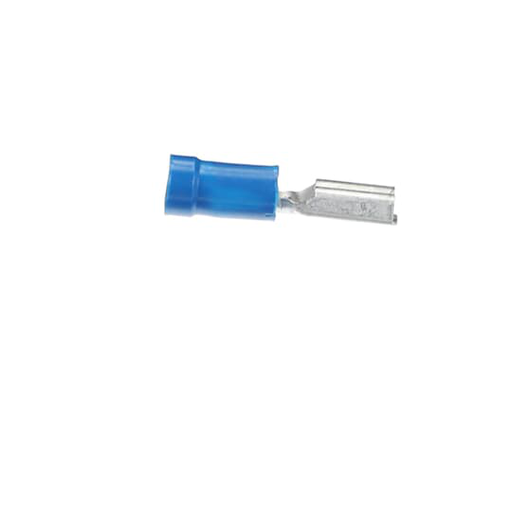

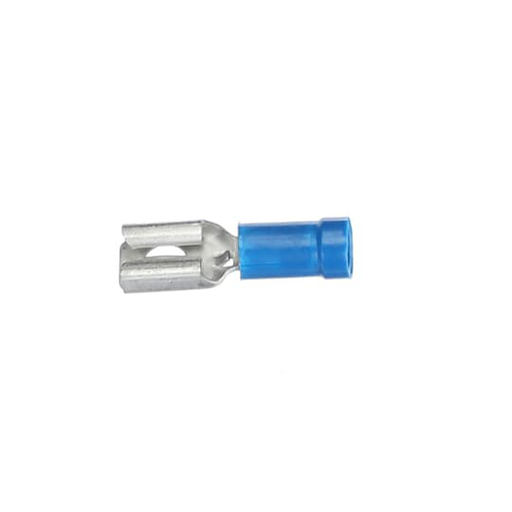

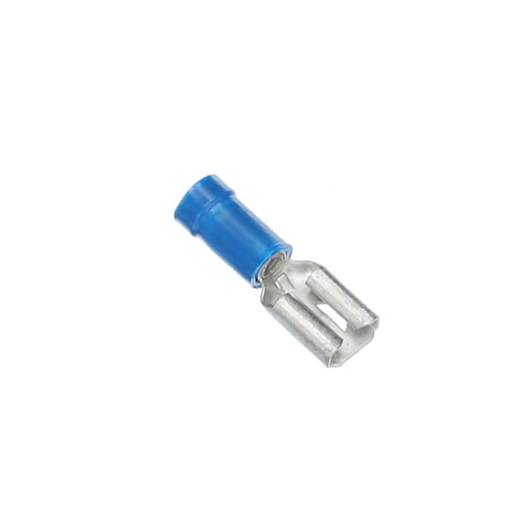

Thomas & Betts 14RB-250F 16 to 14 AWG Blue Electrotinned Brass Vinyl Insulated Female Disconnect

Manufacturer: Thomas & Betts | Catalog # 14RB-250F | North Coast Part # 160803
$325.52/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
500 available

For Pick Up

at Auburn Closes 3:00pm PT
500 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page
Vinyl-Insulated Female Disconnect, Length 0.96 Inch, Width 0.29 Inch, Max Insulation 0.17, Tab Size 0.25x.032, Wire Range #16-14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
16-14 AWG
Insulation Material
PVC
Insulation Type
Vinyl
Material
Brass
Standard
UL E66716
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800776
Color
Blue
Finish
Electro-Tin Plated
GTiN
05414363131694
Product UPC
78621080077
Used With
Round Conductors
Features
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Certifications
  • CSA
  • UL
