Thomas & Betts 14RB-2577 Nylon Fully-Insulated Female Disconnect - 16-14, .250x.032tab

Manufacturer: Thomas & Betts | Catalog # 14RB-2577 | North Coast Part # 161224
$335.78/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
150 available

For Pick Up

at Auburn Closes 3:00pm PT
150 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet

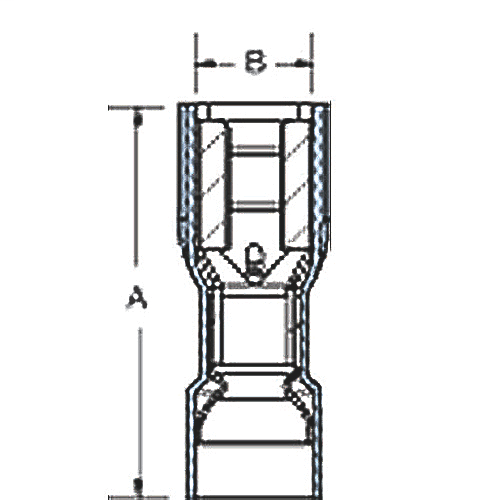

Nylon Fully Insulated Female Disconnect, Length 1.01 Inches, Width .38 Inches, Maximum Insulation .185, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Brass, Tin Plated

Technical Information

Conductor Size
16-14 AWG
Insulation Material
PVC
Insulation Type
Nylon,Polyamide
Material
Brass
Temperature Rating
105 degrees C
Type
Long Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210839325
Color
Blue
Finish
Electro-Tin Plated
GTiN
05414363135067
Product UPC
78621083932
Used With
Round Conductors
Certifications
  • CSA
  • UL
Features
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
