HWDK DR20C2GN 2/2 CONTROLLED 20A 12

Manufacturer: Hubbell / Kellems | Catalog # DR20C2GN | North Coast Part # 1612538
$19.62/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
8 available

For Delivery

Order by Friday 4:00pm PT for delivery Monday
Out of stock, call for availability
Specification Sheet Product Catalog Page

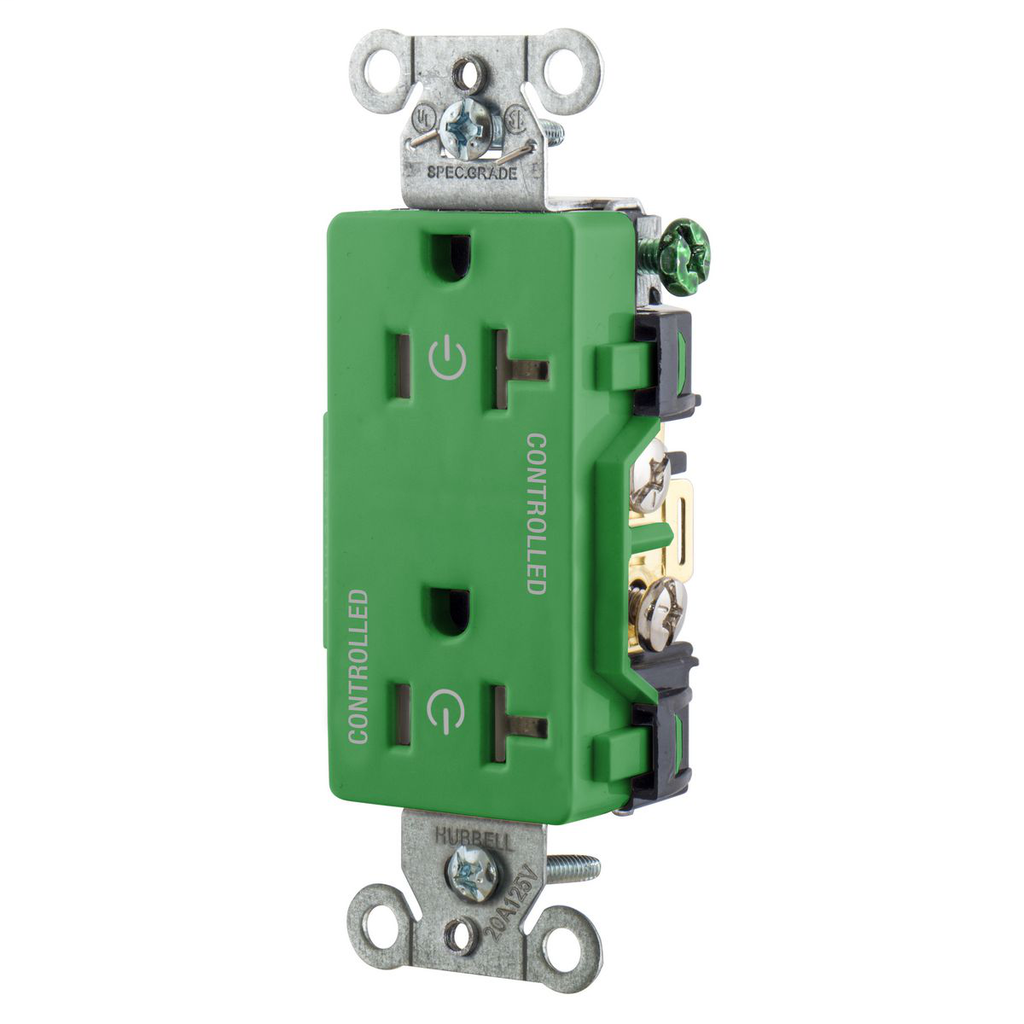

Straight Blade Devices, Receptacles, Decorator Duplex, Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Green

Technical Information

Applications
Commercial Specification Grade
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
Number of Poles
2 Pole
Number of Wires
3
Size
1.32 in x 0.83 in x 3.28 in
Standard
22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42,UL,UL498 File No. E2186
Type
Two Controlled Faces
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems

General Product Info

Color
Green
GTiN
00783585551494
Product Series
Controlled
Product UPC
78358555149
Weight
0.2 lb

Dimensions

Height
1.66 Inch
Length
1.32 Inch
Width
0.83 in

Certifications and Compliance

Country of Origin
China
