Thomas & Betts NW14-8 #8 Bolt Hole 16-14 AWG Wire Range Non-Insulated High Temperature Ring Terminal

Manufacturer: Thomas & Betts | Catalog # NW14-8 | North Coast Part # 16181
$455.98/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

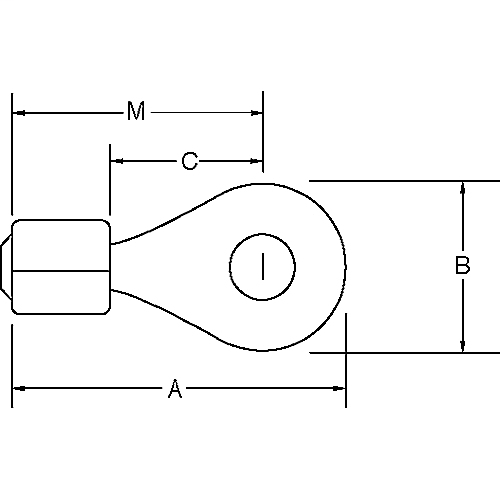

Non-Insulated High-Temperature Ring Terminal, Length .66 Inches, Width .31 Inches, Bolt Hole #8, Wire Range #16-#14 AWG, 1200 Degree Fahrenheit Maximum, Nickel Alloy, Plain Finish

Technical Information

Conductor Size
16-14 AWG
Material
Nickel
Stud Size
#8
Temperature Rating
1200 degrees F
Type
Non-Insulated Ring Terminal
Voltage
600 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210769790
Color
Metallic
GTiN
05414363934325
Product UPC
78621076979
Features
  • For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.
Notes
  • Not available on Mylar Tape.
