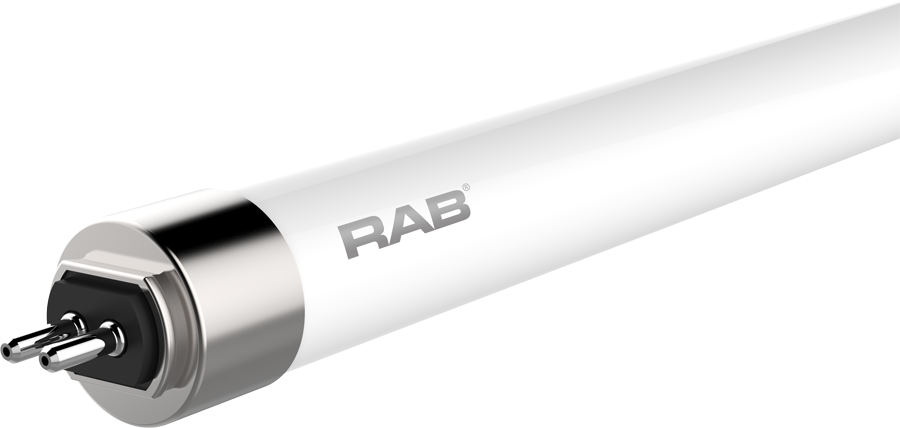

Product image for RAB T5-25-48G-850-BYP LED T5 4ft 25
Image thumbnail 0
Image thumbnail 1
Email

RAB T5-25-48G-850-BYP LED T5 4ft 25

Manufacturer: RAB Lighting | Catalog # T5-25-48G-850-BYP | North Coast Part # 1636588
$21.73/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Linear Tubes 3500 Lumens T5 25W 4 Feet Glass 80CRI 5000K Ballast Bypass

Technical Information

Applications
Damp Locations,Totally Enclosed Fixtures
Average Rated Life
50,000 hr
Base
G5
Base Type
G5
Beam Angle
180 degrees
Beam Spread
240 degrees
Bulb Shape
T5
Color Accuracy
82
Color Rendering Index
82
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Dimmable?
No
Efficacy
140 LPW
Input Voltage
120 V
Input Wattage
25
Lumens
35,000 Lumen
Material
Glass
Operating Frequency
60 Hz
Operating Temperature
-20 degrees C
Power Factor
0.9
Type
HID Lamps&Specialities
Voltage
120-277 Volt
Wattage
25 Watt

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813751344
Color
5000 K
Finish
White
GTiN
00019813751344
Product UPC
01981375134
Weight
0.5 lb

Dimensions

Length
4 Foot
Warranty Length
5 yr
Features
  • Replacement for conventional fluorescent T5HO tubes
  • Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Double ended wiring method
  • 50,000 hour Lifespan
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • UL Classified, DLC Listed
  • Emergency back up available. Catalog Numbers: DRI-5-EMGR-T8, DRI-10-EMGR-TYPE B
  • Compatible with RAB specified 0-10V dimming system
  • Equivalency
  • Warranty
