Dual-input waveform and meter reading recorder with event detect for trending data and identifying elusive events
Family Brand Name
General Product Info
The recorder captures meter readings in Meter Recorder mode or continuously captures waveform samples in Scope Recorder mode. The information is stored on internal memory or on optional SD card (with the 125B or 124B).
The accuracy of all measurements is within (% of reading + number of counts) from 18 °C to 28 °C.
Temperature (TEMP) with optional temperature probe
Add 0.1x (specific accuracy) for each °C below 18 °C or above 28 °C. For voltage measurements with 10:1 probe, add probe uncertainty +1%. More than one waveform period must be visible on the screen.
Includes frequency of fundamental, phase Angle and K-factor (in Amp and Watt)
The results are displayed as Chart recorder display that plots a graph of min and max values of Meter measurements over time or as a waveform recorder display that plots all the captured samples.
Shielded Test Leads with Black Ground Leads
Hook Clips (red, blue)
Test Lead Black (for Grounding)
USB Angled Adapter
Rechargeable Li-ion Battery Pack
Soft Carrying Case
WiFi USB Adapter*
FlukeView® ScopeMeter® Software for Windows®

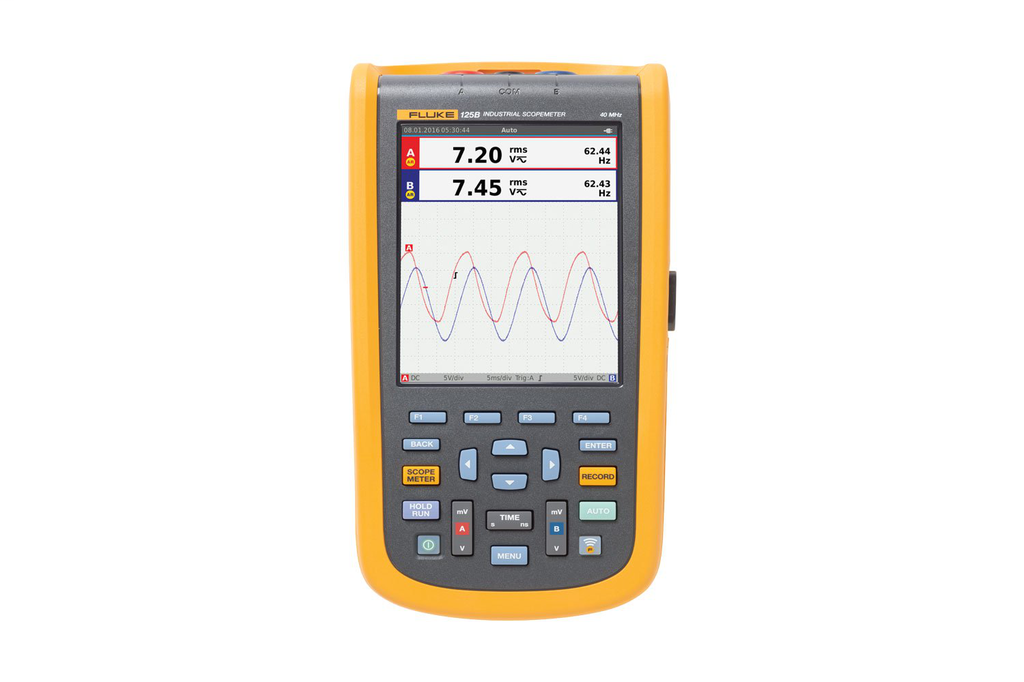

Fluke 123B Hand-Held Oscilloscope
Banana-to-BNC Adapters (black, x1)
Switch Mode Power Supply, Adapter/Battery Charger
Not all models are available in all countries. Check with your local Fluke representative.
Simplified testing, more insight and faster electro-mechanical troubleshooting

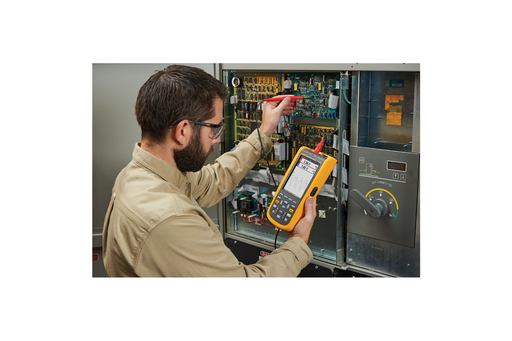

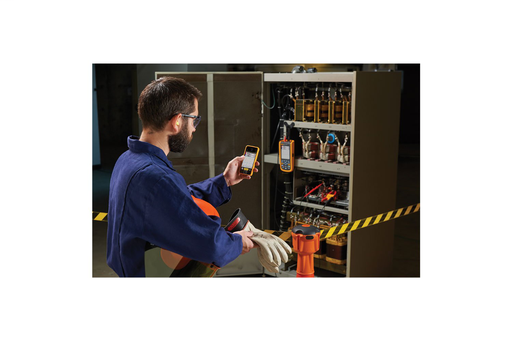

The compact ScopeMeter® 120B Series, is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It's a truly integrated test tool, with oscilloscope, multimeter and high-speed recorder in one easy-to-use instrument. The ScopeMeter 120B Series also integrates with Fluke Connect® mobile app and FlukeView® for ScopeMeter software to enable further collaboration, data analysis and archiving of critical test information.
Dual-input digital oscilloscope and multimeter in a ScopeMeter® test tool
Features Connect-and-View™ trigger simplicity for hands-off operation
Available with a 40 MHz or 20 MHz oscilloscope bandwidth
Provides a dual-input waveform and meter reading recorder for trending data over extended periods
Includes IntellaSet™ technology to automatically and intelligently adjust numerical readout based on measured signal
Other Useful Features
Performs power measurements (W, VA, VAR, PF, DPF, Hz)
Features two 5,000-count True-RMS digital multimeters
Features highest safety rating in the industry: safety rated for CAT IV 600 V

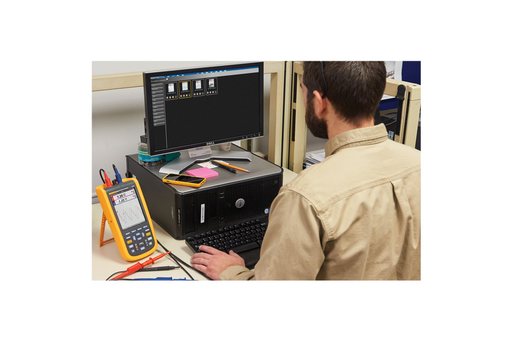

Includes FlukeView® ScopeMeter® software for Windows®
Runs on a Li-Ion rechargeable battery providing seven-hours operation (with four-hour charge time)
Allows you to save and recall data and instrument setups
Features a rugged design to withstand 3g vibration, 30g shock, and rated IP51 according to EN/IEC60529
Check Industrial networks with BusHealth physical layer tests against defined reference levels (125B only)
Measures voltage, current and power harmonics
Offers recorder Event Detect to capture elusive intermittent signals on repetitive waveforms up to 4 kHz
Features resistance, continuity, diode, and capacitance meter measurements
Comes with shielded test leads for oscilloscope, resistance and continuity measurements
