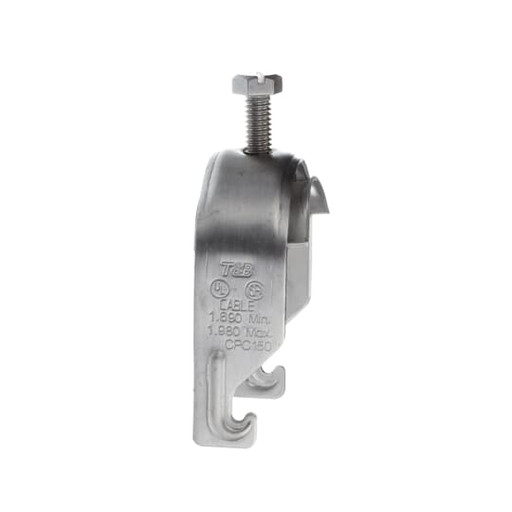

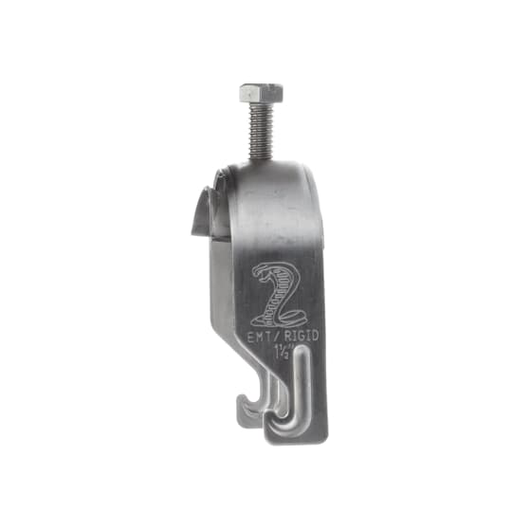

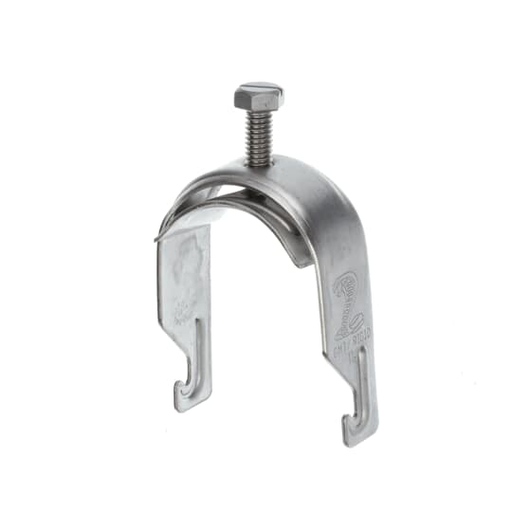

Superstrut CPC150 1-1/2" Cobra One-Piece Cable and Pipe Clamp (1.690" - 1.980")

Manufacturer: Thomas & Betts / Superstrut | Catalog # CPC150 | North Coast Part # 163906
$375.93/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Clamp, One-Piece Cable and Pipe, EMT and Rigid Conduit Trade Size 1-1/2 Inches, Cable Outer Diameter Range 1.690-1.980 Inches, Steel

Technical Information

Applications
Attaches a Full Range of EMT, Rigid Conduit and Cable to Strut Channels
Material
Steel
Number of Holes
1 Hole
Size
1 1/2 in
Standard
UL E160899
Trade Size
1-1/2 Inch
Type
1-Piece, Series 700, Heavy Duty

Manufacturer Information

Brand
ABB
Sub Brand
Superstrut®

General Product Info

12-Digit UPC
616013107065
Finish
Silver
GTiN
05415022256208
Product UPC
61601310706

Dimensions

Thickness
0.112 in
Width
1 in
Features
  • One-piece, heavy-duty construction ready to install right out of the box, no need to break apart and reassemble, no screws or bolts to drop.
  • Heavy-duty 5/16 in. hex bolt with multi-driver head, Robertson square, Phillips cross-recess and slot, provides a full range of installation options.
  • Parallel hook design keeps conduits and cable square with strut.
  • Reconfigure wiring without complete disassembly. Remove cables easily without disturbing neighboring clamps.
  • Works with all depths of strut - 13/16 in. to 3 1/4 in.
Application
  • Attaches a full range of EMT, Rigid conduit and cable to strut channels.
Notes
  • Safety factor 4:1 (safety factor is ratio of ultimate load to the design load)
