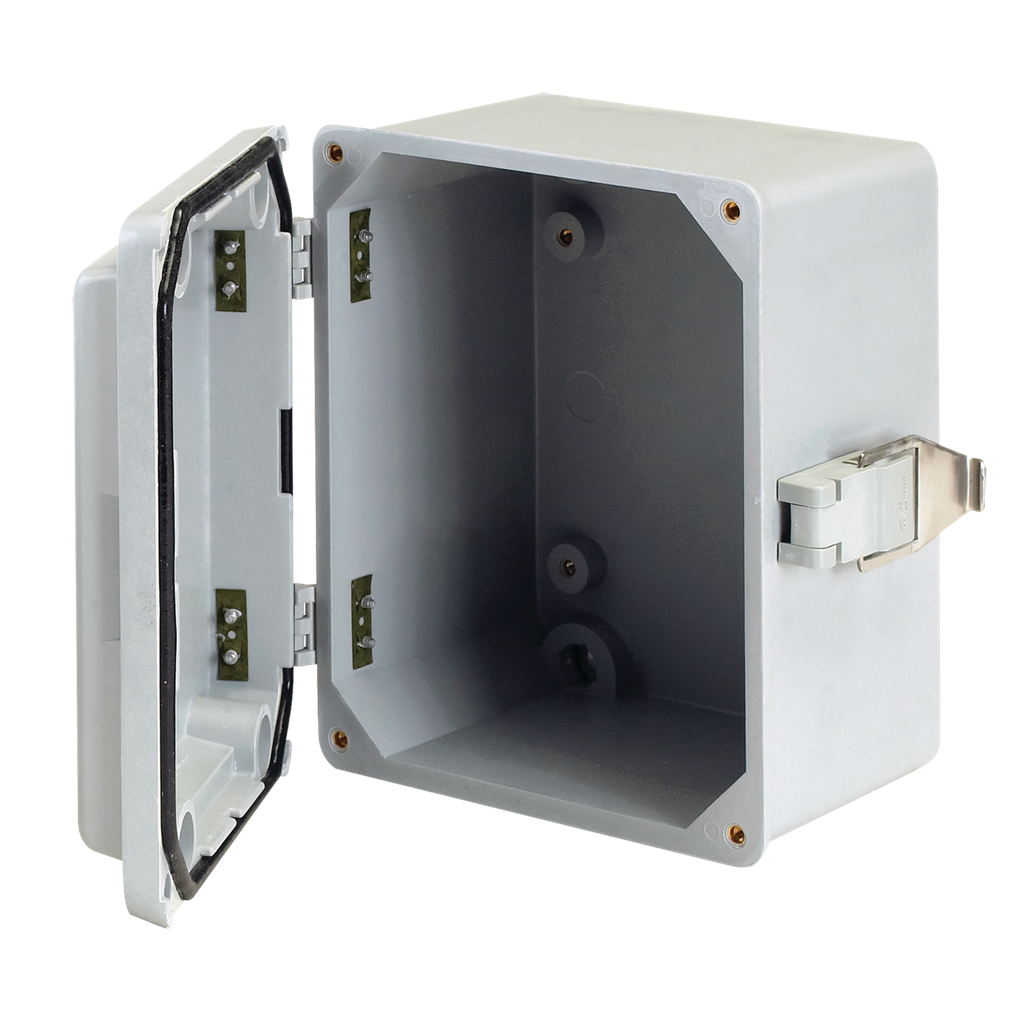

Product image for Hoffman A14107JFGR Screw Cover Quick-Release Latch Type 4X, 13.5" x 10" x 7.2", Gray, Fiberglass
Email

Hoffman A14107JFGR Screw Cover Quick-Release Latch Type 4X, 13.5" x 10" x 7.2", Gray, Fiberglass

Manufacturer: nVent Hoffman | Catalog # A14107JFGR | North Coast Part # 164579
$401.63/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.

Technical Information

Applications
Controls and Drives, Corrosive Environments
Capacity
971 cu in
Color Coding
RAL 7035
Cover Type
Solid Cover
IP Rating
66
Material
Fiberglass/Plastic
Mounting Type
Wall
Size
13.50x10.00x7.19 in
Standard
CSA File No. 42186: Type 3R, 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
Type
Single Door, Single Lock, Watertight, Corrosion-Resistant

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510411800
Color
RAL 7035 Light Gray
Finish
Matte
GTiN
00783510411800
Product UPC
78351041180
Weight
7.4 lb

Dimensions

Depth
178 mm
Height
356 mm
Length
14.3 Inch
Thickness
3 mm
Width
254 mm
Features
  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
  • Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
  • A Type 316L stainless steel padlock hasp is furnished with each enclosure
  • Sealing washers are furnished with enclosure
