3M 7100029960 3M™ Heat Shrink Thin-

Manufacturer: 3M | Catalog # 7100029960 | North Coast Part # 1651522
$0.76/ea
ea
Order in multiples of 3 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

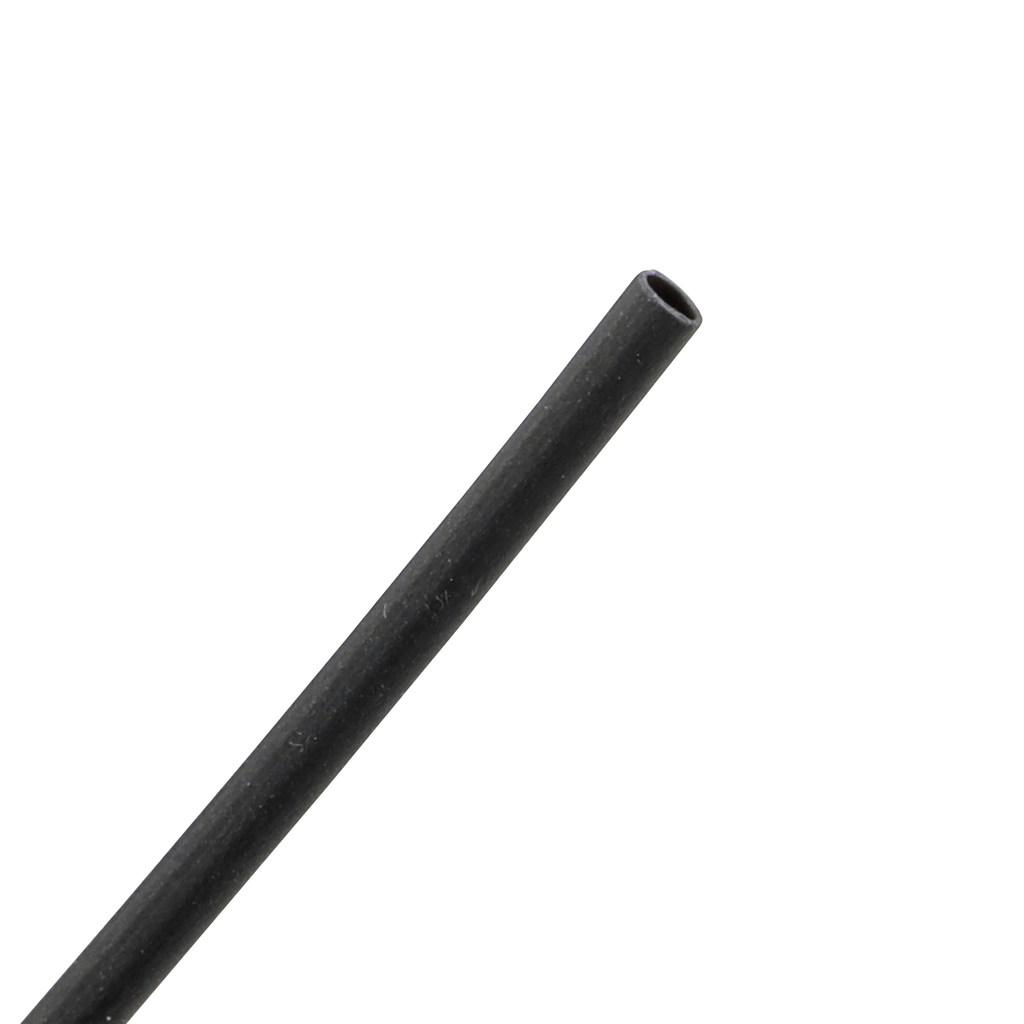

3M™ Heat Shrink Thin-Wall Tubing is a heat-shrinkable, flexible polyolefin tubing that offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications.

Technical Information

Dielectric Strength
900 V/mil
Flame Retardant
Yes
Material
Polyolefin
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2 to 1
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Tensile Strength
2400 lb/in
Type
Single Key Access

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007084617
Color
Black
GTiN
00054007084617
Product UPC
05400708461

Dimensions

Inside Diameter
0.031
Length

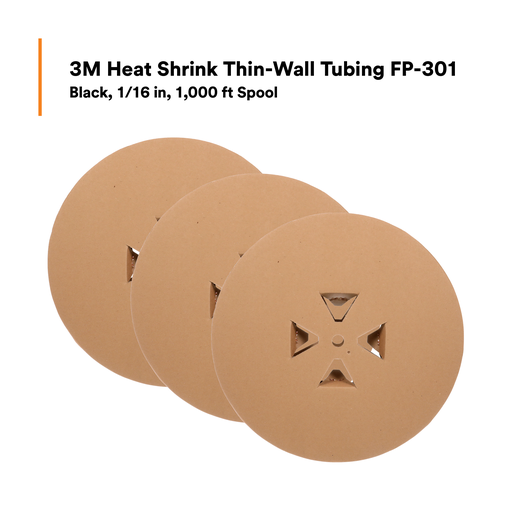

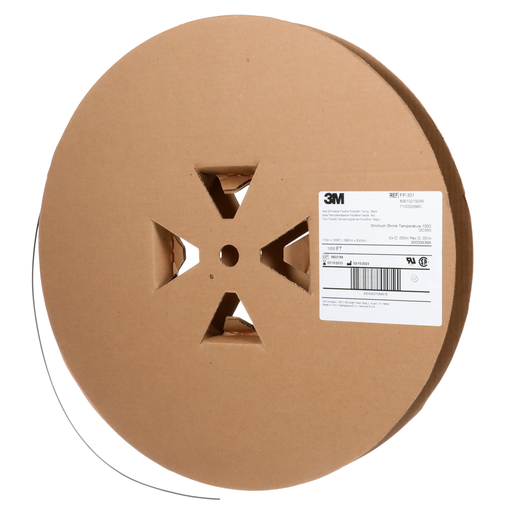

1000 Foot
Outside Diameter
0.063 in
Overall Length
1000.0 ft
Thickness
0.017

Certifications and Compliance

Country of Origin
USA
Features
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
