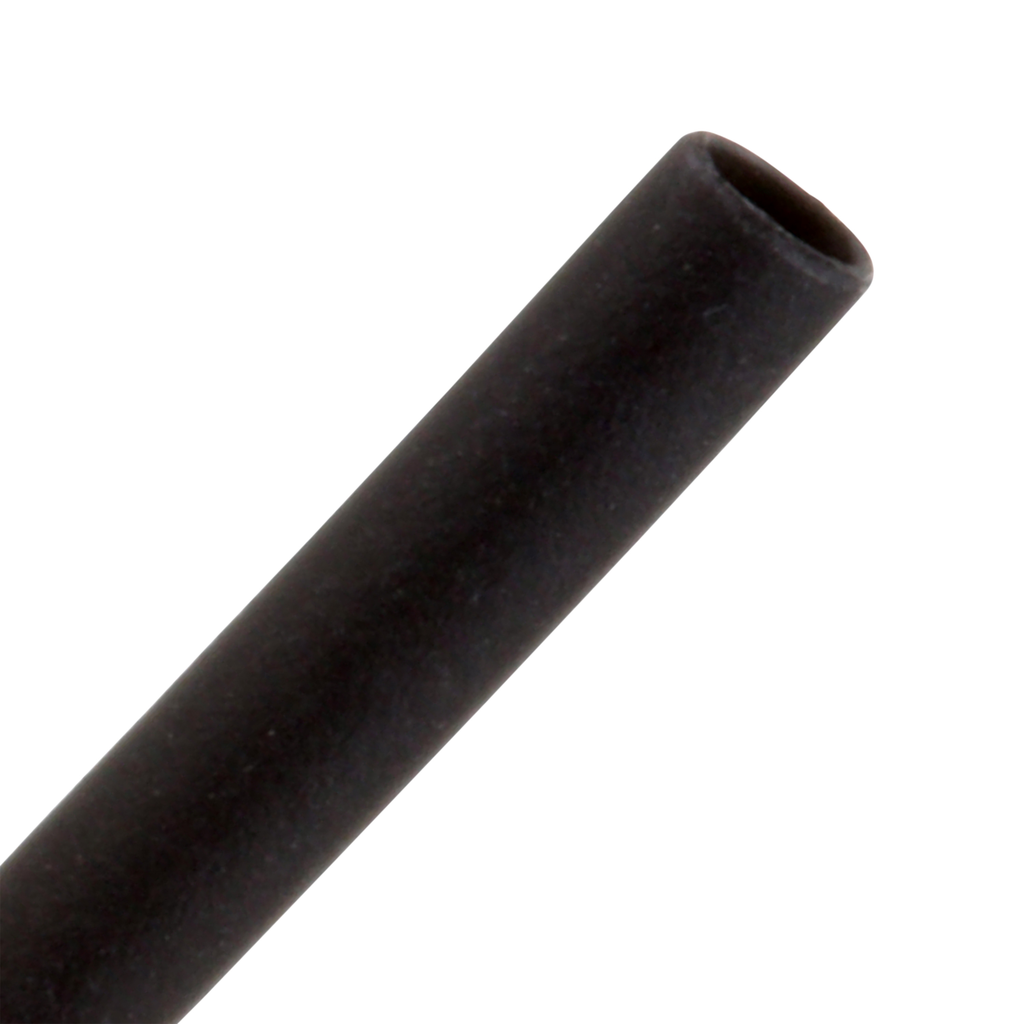

Product image for 3M 7100111120 3M™ Heat Shrink Thin-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5

Email

3M 7100111120 3M™ Heat Shrink Thin-

Manufacturer: 3M | Catalog # 7100111120 | North Coast Part # 1651577

$3.40/ea
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
3M™ Heat Shrink Tubing FP-301 offers durable shrink-fit protection for use in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging. Made of flexible polyolefin, the tubing is self-extinguishing, meets UL 224 All-Tubing Flame Test (except clear), and is ideal for cable splices and terminations to balance electrical and physical, and chemical properties within a variety of industrial and military applications rated up to 600V. The 2:1 shrink ratio tubing is mechanically tough and helps to protect from splits and cold flow while being easily markable. 3M™ Heat Shrink Tubing FP-301 can handle demanding environments within an operating temperature range of -67 °F (-55 °C) to 275 °F (135 °C) and is UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant.

Technical Information

Dielectric Strength
900 Volt
Material
Polyolefin
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2:01
Type
Thin-Wall Flexible Polyolefin

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128598085
Color
Black
GTiN
00051128598085
Product UPC
05112859808

Dimensions

Length
48 Inch
Outside Diameter
0.0625 in
Overall Length
48.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
