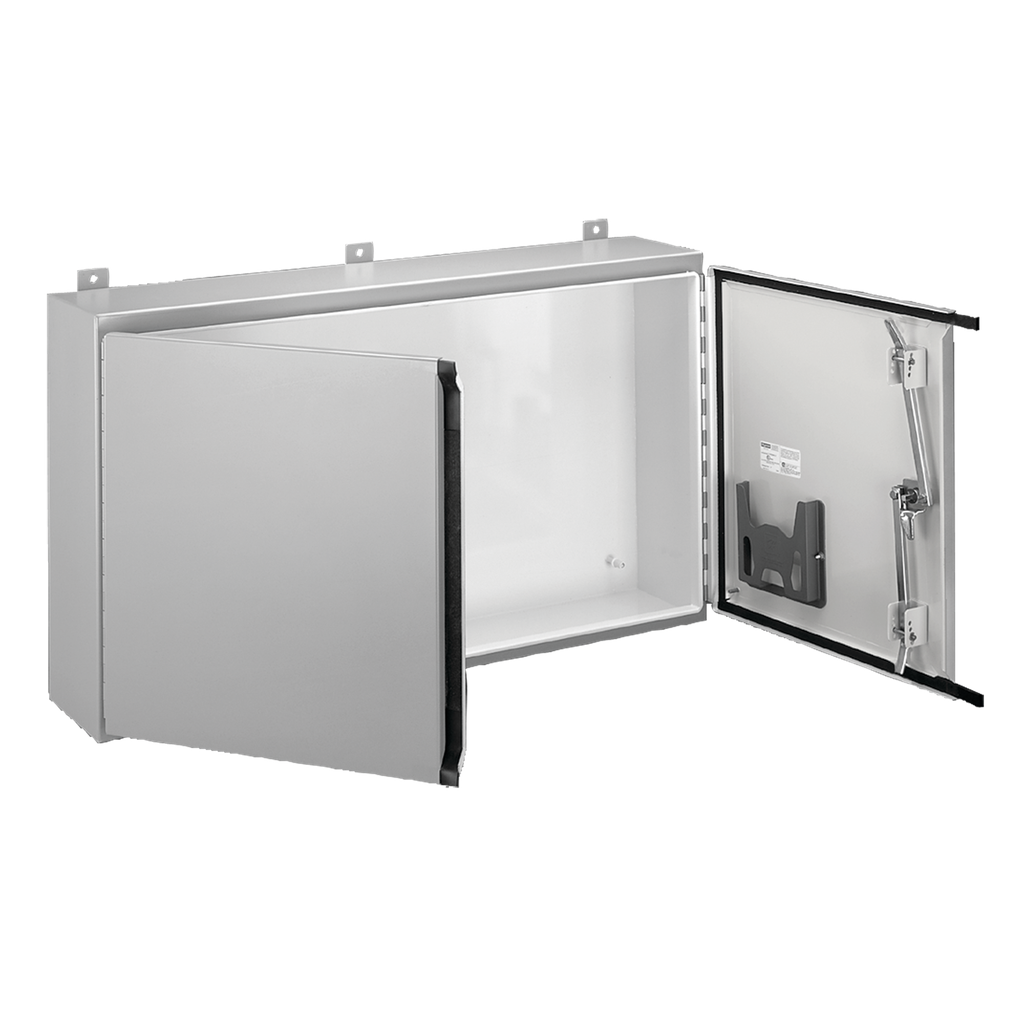

Product image for Hoffman A306010WFLP Continuous Hinge Two-Door with Handle, Type 12, 30" x 60" x 10", Steel
Email

Hoffman A306010WFLP Continuous Hinge Two-Door with Handle, Type 12, 30" x 60" x 10", Steel

Manufacturer: nVent Hoffman | Catalog # A306010WFLP | North Coast Part # 165457
$2,944.85/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Ideal for larger wall-mount applications requiring ease of installation and access to full-width internal panel. Overlapping door design allows easy access in areas with minimal aisle space.

Technical Information

Applications
Ideal for Larger Wall Mount Applications Requiring Ease of Installation and Access to Full-Width Internal Panel and Overlapping Door Design Allows Easy Access in Areas with Minimal Aisle Space
Cover Type
Continuous Hinged 2-Door with Handle
Material
Steel
Mounting Type
Wall
Size
30.00x60.00x10.00 in
Standard
CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 12,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Type
Double Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510271602
Color
Gray
Finish
Enamel Coated
GTiN
00783510271602
Product UPC
78351027160
Weight
136 lb

Dimensions

Depth
10 Inch
Height
30 Inch
Length
61 Inch
Thickness
1.52 mm
Width
60 in
Features
  • Seams continuously welded and ground smooth
  • External welded-on mounting brackets for easy installation
  • External formed body flange channels away liquids
  • Gasketed overlapping doors eliminate need for center post
  • Removable door with continuous hinge
  • Oil-tight key-locking handle with 3-point latch
  • Removable heavy gauge continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Collar studs for mounting optional panels
  • Bonding provision on both doors
  • Body is white inside with ANSI 61 grey finish outside
  • Door is ANSI 61 grey inside and outside
