LITH JEBL 30L HVOLT 50K 80CRI WH LE

Manufacturer: Juno Lighting | Catalog # JEBL 30L HVOLT 50K 80CRI WH | North Coast Part # 1659111
$698.12/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
LED Economical Round Bay Light, 30,000 nominal lumens, 347V-480V, 5000K, 80 color rendering index, White finish, SKU - 252JFA

Technical Information

Applications
Manufacturing,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80
Color Temperature
5000 K
Correlated Color Temp
5000 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
White
Lens Material
Tempered Glass
Lumens
30, 000 Lumen
Mounting Type
Pendant,Suspended
Style
Traditional
Type
High Bay
Voltage
347 Volt
Wattage
220 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
193047073837
Color
White
Construction
New Construction,Remodel
Environmental Conditions
Indoor
Finish
Gloss
Fixture Type
High Bay
GTiN
00193047073837
Product UPC
19304707383
Shape
Round
Weight
12.3 lb

Dimensions

Height
5.187 Inch
Length
15-3/4 Inch
Width
15.75 in
Features
  • JEBL comes standard with a die-cast aluminum construction, quick-disconnect driver housing and 6kV surge protection; JEBL is extremely durable and easy to install with mounting and reflector options; JEBL can be used in indoor and outdoor applications
  • Easily replace 10-lamp T5HO or 575W HID with LEDs that save energy and reduce total cost of ownership
  • 0-10V dimming standard for a dimming range of 100 to 10 percent
  • CSA listed to US and Canadian Safety Standards; Wet location listed; For use under covered ceilings; For use in ambient temperatures from -40°F (-40°C) to 131°F (55°C); IP65 rated
  • Install 1/4\" NPT eye bolt with 1/2\" thick loop and 17 3/4\" cord with dimming lead provided for easy installation and optional surface mount brackers allows for flexibility by adjusting 15 degree increments for a total range of 150 degrees
  • LEDs provided 80 color rendering index (CRI), 12,000 lumens at 5000K with a daylight color temperture

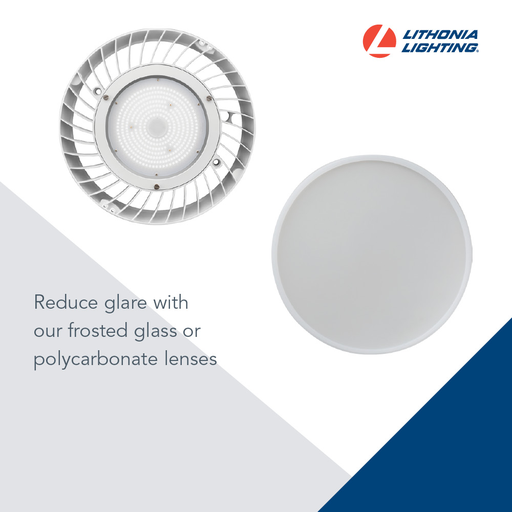

  • JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing and optional clear polycarbonate or diffuse aluminum reflectors available separately
  • Emergency battery back-up not included in this version
  • Buy with confidence with a 5-year limited warranty

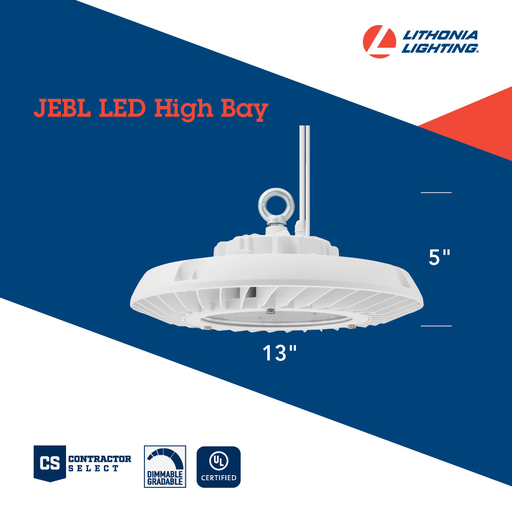

  • Dimensions diameter 15.75-in x depth 5.1875-in
Standards
  • cUL
  • ULDLC Premium
  • DLC Standard
Applications
  • Manufacturing
  • Warehouses
