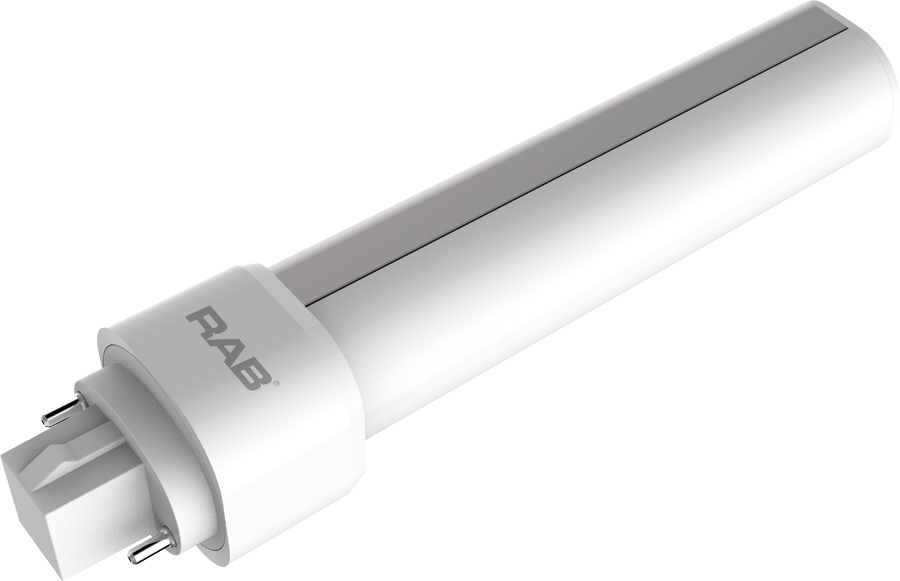

Product image for RAB PLC-9-H-840-BYP LED PLC 9W Hori
Image thumbnail 0
Image thumbnail 1
Email

RAB PLC-9-H-840-BYP LED PLC 9W Hori

Manufacturer: RAB Lighting | Catalog # PLC-9-H-840-BYP | North Coast Part # 1685398
$15.04/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Compacts 1000 Lumens Plc 9W Horizontal 80CRI 4000K Ballast Bypass

Technical Information

Applications
Damp Locations,Totally Enclosed Fixtures
Average Rated Life
50,000 hr
Base
G24d
Base Type
G24d
Bulb Shape
PLC
Color Accuracy
82
Color Rendering Index
82
Color Temperature
4000 K
Correlated Color Temp
4,000 K
Dimmable?
No
Efficacy
111 LPW
Input Voltage
120 V
Input Wattage
9
Lumens
1,000 Lumen
Operating Frequency
60 Hz
Operating Temperature
-20 degrees C
Power Factor
0.9
Type
LAMPS
Voltage
120-277 Volt
Wattage
9

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813751535
Color
4000 K
Finish
White
GTiN
00019813751535
Product UPC
01981375153
Weight
0.2 lb

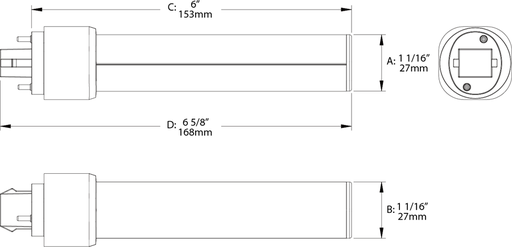

Dimensions

Warranty Length
5 yr
Features
  • Replaces 18W/26W/32W G24d & G24q CFL Lamps
  • Ballast Bypass. Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Compatible with G24d / GX24d & G24q / GX24q installations
  • 50,000 hour Lifespan
  • Environmentally friendly, no mercury used
  • UL Classified
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Non-Dimmable
  • 5 Year No Compromise Warranty
  • Equivalency
  • Warranty
