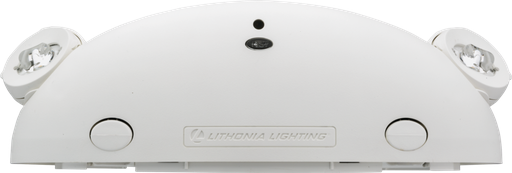

LITH ELM2L UVOLT LTP M12 ELM2L, 120

Manufacturer: Lithonia Lighting | Catalog # ELM2L UVOLT LTP M12 | North Coast Part # 1687700
$162.26/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet MDM Safety Data Sheet

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Residential,Retail,Sports And Recreation
Color Rendering Index
70
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Lamp Type
LED
Lens Color
Clear
Lens Material
Acrylic
Lumens
220 Lumen
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
2
Power Source
Hardwired
Type
Emergency Lighting Unit
Voltage
120 Volt
Wattage
1.34 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191848078112
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Textured
Fixture Type
Emergency Lighting Unit
GTiN
00191848078112
Product UPC
19184807811
Weight
2.88 lb

Dimensions

Height
5.93 Inch
Length
13.37 Inch
Width
3.7 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Standards
  • C-UL-US
  • NFPA 101
  • NFPA 70
  • NOM
  • ULCA Title 20
Features
  • MOUNTING: Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
  • UPGRADE: Easily replaces existing emergency lighting units
  • CONTROLS: Optional STAR self-testing automated reporting feature
  • RATINGS / LISTINGS: UL damp location listed standard and wet location listed with the WPVS accessory, all at 50-104°F (10-40°C), meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
  • VOLTAGE: Functions between 120 and 347 volt with input wattage of 1.35 watts
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years using two 1 Watt LED lamps for emergency light
  • HOUSING: Standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
  • SELF-DIAGNOSTICS: Includes test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
  • WARRANTY: 5-year limited warranty
  • DIMENSIONS: 9.72\" x 4.68\" x 3.1\
Applications
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Residential
  • Retail
  • Sports and Recreation
