Thomas & Betts RC10-8X #8 Bolt Hole 12-10 AWG Wire Range Yellow Expanded Insulated Nylon Ring Terminal

Manufacturer: Thomas & Betts | Catalog # RC10-8X | North Coast Part # 169369
$602.23/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

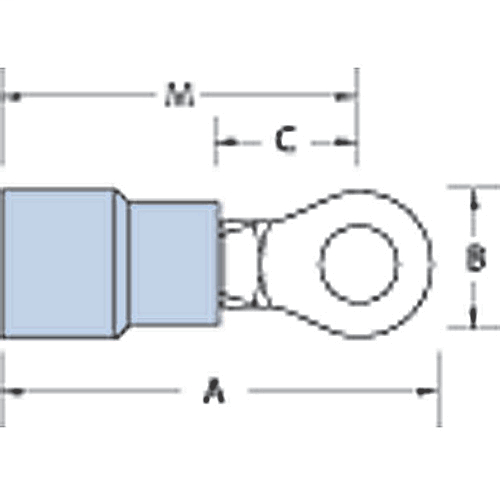

Nylon Insulated Expanded Entry Ring Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Expanded Insulated Nylon
Material
Copper
Standard
CSA,E2186,UL
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804378
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363933526
Product UPC
78621080437

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.1 in
Certifications
  • UL
  • CSA
Features
  • Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
