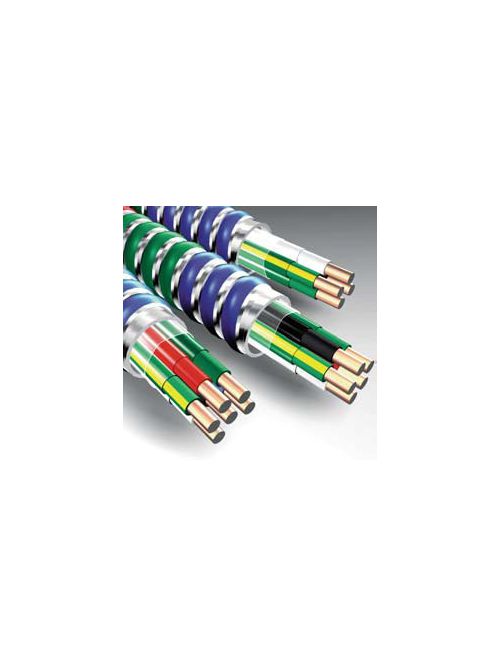

MC-IG Cable 12/2 Solid (Red,White) w/ 12 Solid (Green, Green/Yellow) Ground, Steel Armored Lightweight Isolated Ground Cable, 120/208V, 250 Foot Coil
$1,558.37/m (1000 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 250 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer AFC MC Cable
Mfg Catalog # 1705B42T84
North Coast Part # 419293
MC TUFF IG Type MC Cable, Traditional Lightweight, With Isolated Ground And Neutral, 2 Conductors, 12 AWG Conductor And Ground, Solid Copper, Outside Diameter: 0.53 IN, 600 V, 90 DEG C (Dry), THHN Insulation, Polypropylene Tape Shield, Galvanized Interlocking Steel Strip (Blue Striped) Armor, Color: 120/208 V: Red, White, Green, Green With Yellow Stripe, 250 FT Coil, Weight: 186 LB/1000 FT, UL 83, 1479, 1569, 1581, 2556 File Number E80042, UL File Number R-14141, NEC 230.43, 250.118, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, ISO 9001 Certified

Overview

UPC 07768020290
Family Brand Name AFC Cable Systems
GTiN 00077680202901
Type MC Tuff IG Isolated Ground Steel Cable
Number of Conductors 3
Conductor Size 12
Insulation Material THHN
Conductor Material Copper
Sub Brand MC Tuff
