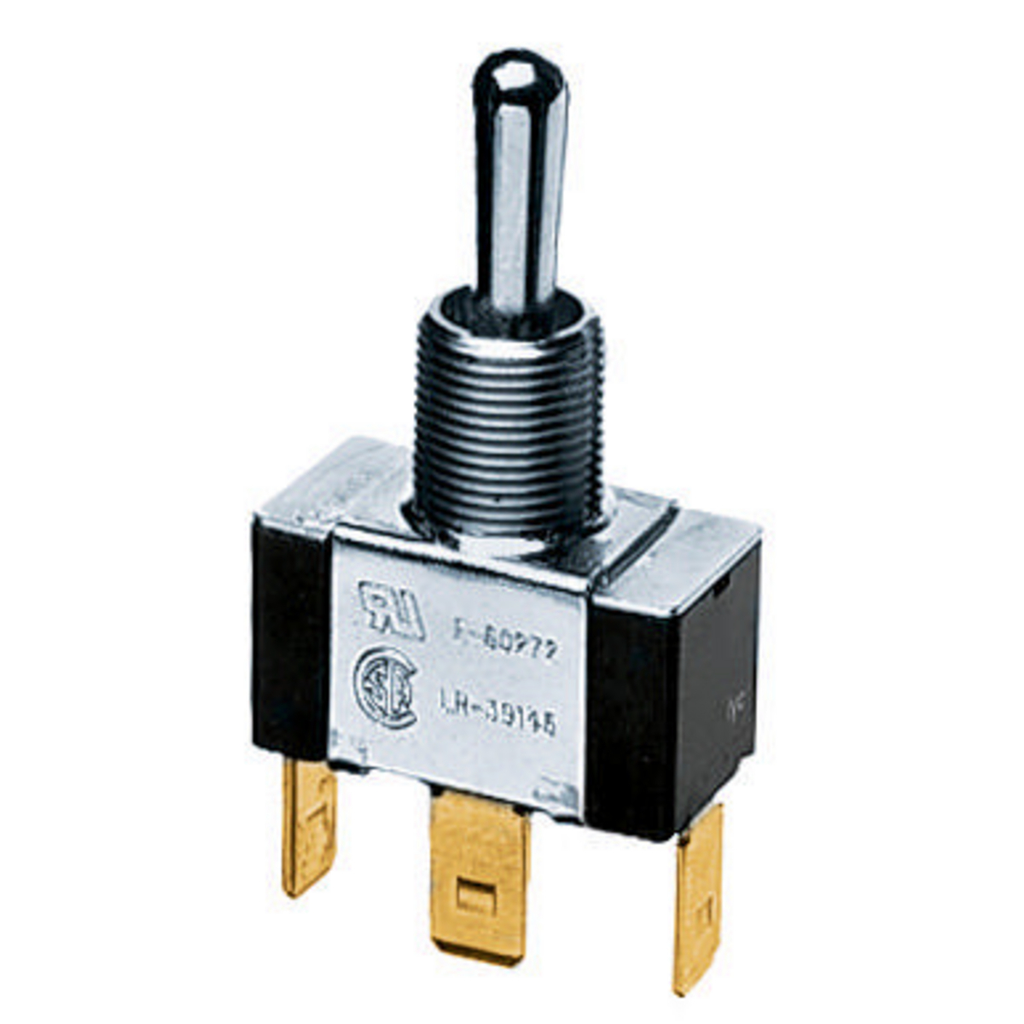

Product image for Hubbell HBL123MM 3/4 Hp 10 Amp 250 VAC SPDT Panel Mount Screw Terminal Bat Handle Heavy Duty Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL123MM 3/4 Hp 10 Amp 250 VAC SPDT Panel Mount Screw Terminal Bat Handle Heavy Duty Switch

Manufacturer: Hubbell / Kellems | Catalog # HBL123MM | North Coast Part # 17073
$26.85 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Product Catalog Page Specification Sheet
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Momentary Single Pole Double Throw Center Off, 10A 250V/10A

Technical Information

Action
Momentary On/Off/Momentary On
Actuator
Bat Handle
Amperage
20 Amp
Applications
For Illuminated 30mm Momentary Contact Push Button
Contact Configuration
Momentary
Contact Rating
As Indicated
Current
10 Amp
Grade
Commercial
Horsepower
0.75 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Metal
Number of Poles
1 Pole
Operating Cycles
Not Rated
Operating Temperature
Max Continuous 75 degrees C, Minimum -40 degrees C
Size
2.15 in x 0.56 in x 1.12 in
Standard
UL
Style
Screw Terminal
Switch Type
Single Pole
TC Connection
Screw, 6 Terminals
Type
Standard, 3-Way, 3-Position
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585016771
Color
Natural
Environmental Conditions
Indoor Only
GTiN
00783585016771
Product Series
Single Pole/Double Throw
Product UPC
78358501677
Weight
0.05 lb

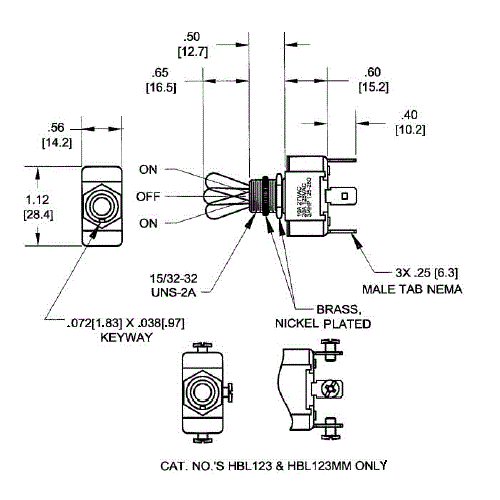

Dimensions

Height
1.12 Inch
Length
2.15 Inch
Width
0.56 in

Certifications and Compliance

Country of Origin
China
Features
  • Nickel Plated for Corrosion Resistance
