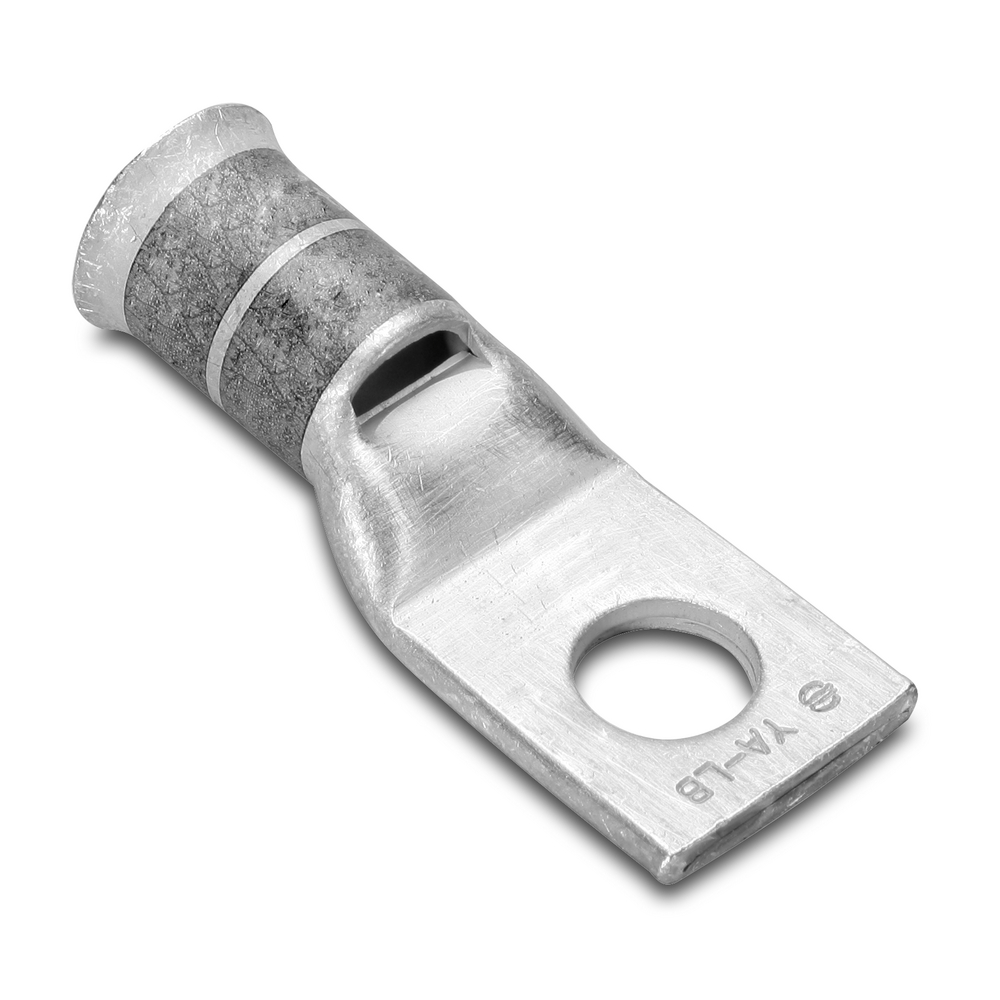

Product image for Burndy YA5CLB 6 Cu Flex 1-Hole Bell 1/
Image thumbnail 0
Image thumbnail 1
Email

Burndy YA5CLB 6 Cu Flex 1-Hole Bell 1/

Manufacturer: Burndy | Catalog # YA5CLB | North Coast Part # 170784
$7.23/ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Cu Comp Terminal Flex Cond, 1 Hole/W/InspWindow, 5 Str Code,N30 Navy, 6 Flex, 6(61/#24)DLO, 600 V-35 kV, 1/4" Stud, Belled End.

Technical Information

Applications
For Code Conductor
Cable Size
Flexible Copper: 6 AWG, Welding Cable, Class M (#34 STR): 6 AWG (665 Strands), Locomotive: 6 AWG (61/24 Strands), Battery Cable, Class K (#30 STR): 6 AWG (266 Strands), Class I (#24 STR): 6 AWG (63 Strands), G: 6 AWG (49 Strands), H: 6 AWG (133 Strands)
Color Coding
Blue
Conductor Material
Copper
Conductor Size
5 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin
Stud Size
0.25 in
Type
Standard Belled, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810501870
Finish
Tin Plated
GTiN
00781810501870
Product UPC
78181050187

Dimensions

Height
0.3 Inch
Hole Size
6.91 mm
Length
1.173 Inch
Width
0.44 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: U6CD1 Die Nest, Y34PR Die Indentor, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Conductor Type: Flexible Copper, Welding Cable, Class M (#34 STR), Locomotive Cable, Battery Cable, Class K (#30 STR), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Wire Strip Length: 7/8 IN, Die Index: 1014
