AFC 1707B42T00 10-2 MC TUFF 250' CO
Product image thumbnail 0
Product image thumbnail 1
$2,583.60/m (1000 ea)
In Stock | 2750 available at 3 locations
ea
Adding...
Order in multiples of 250 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer AFC MC Cable
Mfg Catalog # 1707B42T00
North Coast Part # 419261

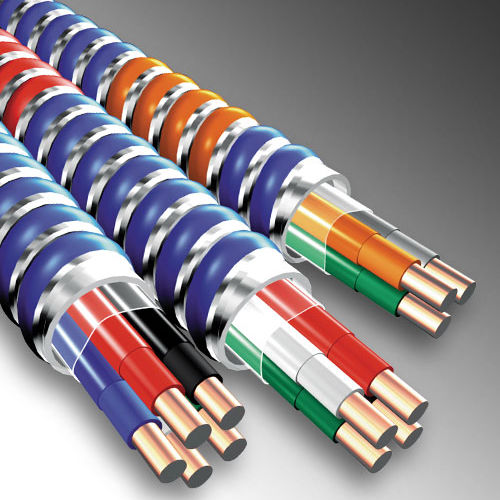

MC TUFF Type MC Cable, Traditional Lightweight, With Ground And Neutral, 2 Conductors, 10 AWG Conductor And Ground, Solid Copper, Outside Diameter: 0.56 IN, 600 V, 90 DEG C (Dry), THHN Insulation, Polypropylene Tape Shield, Galvanized Interlocking Steel Strip (Blue Striped) Armor, Color: 120/208 V: Black, White, Green, 250 FT Coil, Weight: 222 LB/1000 FT, UL 83, 1479, 1569, 1581, 2556 File Number E80042, UL File Number R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, ISO 9001 Certified

Overview

Family Brand Name AFC Cable Systems
Product UPC 07768019576
GTiN 00077680195760
Length 250 ft
Color Black/White/Green
Type Traditional Lightweight Type MC Cable With Ground And Neutral
Number of Conductors 2
Conductor Size 10 AWG Conductor And Ground
Weight 0.222 lb/ft
Temperature Rating 90 C
Insulation Material THHN
Conductor Material Copper
Outside Diameter 0.56 in
Sub Brand MC TUFF
Voltage 600 Volt
