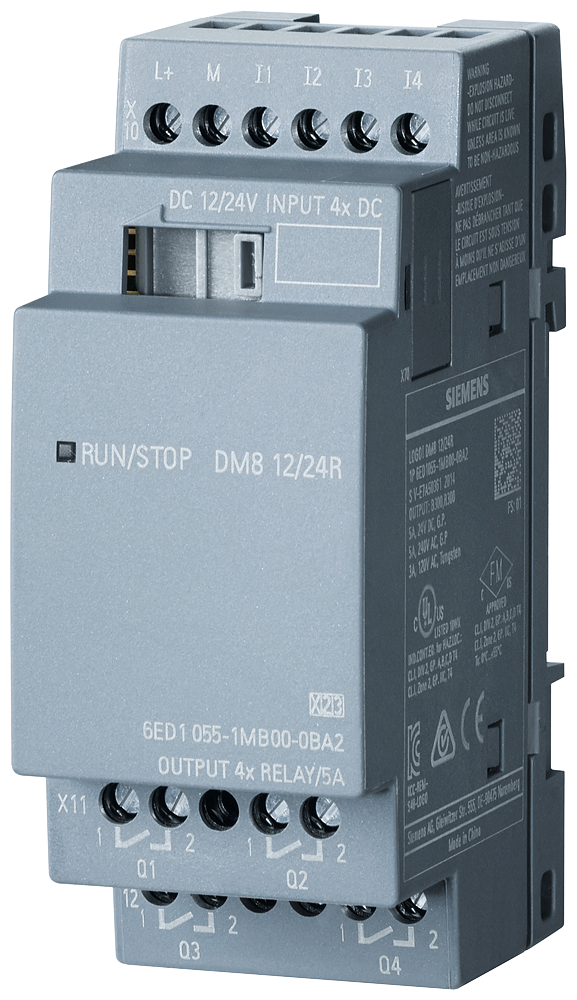

Product image for Siemens 6ED10551MB000BA2 35.5 x 58 x 90 mm 12/24 VDC 4-Input/4-Output Digital Expansion Module
Image thumbnail 0
Image thumbnail 1
Email

Siemens 6ED10551MB000BA2 35.5 x 58 x 90 mm 12/24 VDC 4-Input/4-Output Digital Expansion Module

Manufacturer: Siemens | Catalog # 6ED10551MB000BA2 | North Coast Part # 1710869
$254.60/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
LOGO! DM8 12/24R expansion module, PS/I/O: 12, 24V/12V/24V/relay, 2 MW, 4 DI/4 DO for LOGO! 8 The LOGO! expansion modules enable a LOGO! configuration to be expanded in a very individual way. A LOGO! 8 basic unit can be expanded to 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow expansion with digital and analog inputs and outputs using different input voltages.

Technical Information

Amperage
1.5 mA Input, 5 Amp Output, 3 Amp Inductive/5 Amp Resistive Switching Output
Connection Type
Screw Connection
Mounting Type
35 mm DIN Rail
Number of Inputs
4
Output
(4) Relay
Power Consumption
1000 W Switching Output
Temperature Rating
0 - 55 degrees C Ambient
Voltage
12-24 VDC

Manufacturer Information

Brand
Siemens

General Product Info

12-Digit UPC
887621847517
GTiN
00887621847517
Product UPC
88762184751
Used With
LOGO! 8 Logic Module
Weight
0.366 lb

Dimensions

Depth
58 mm
Height
2.24 Inch
Length
3.82 Inch
Width
2.760 in

Certifications and Compliance

Country of Origin
China
