Thomas & Betts RC1337 12-10 AWG Wire Range #6 Bolt Hole Yellow Insulated Vinyl Fork Terminal

Manufacturer: Thomas & Betts | Catalog # RC1337 | North Coast Part # 171298
$103.15/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

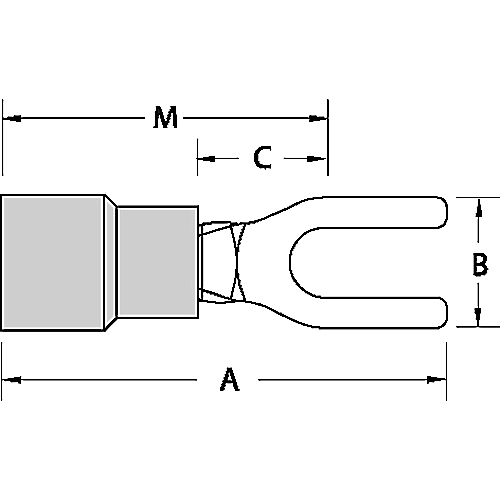

Vinyl Insulated Fork Terminal, Length 1.09 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
105 degrees C
Type
Vinyl Insulated Fork Terminal
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210830230
Color
Yellow
Finish
Tin Plated
GTiN
00786210830230
Product UPC
78621083023

Dimensions

Length
1.09 Inch
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
