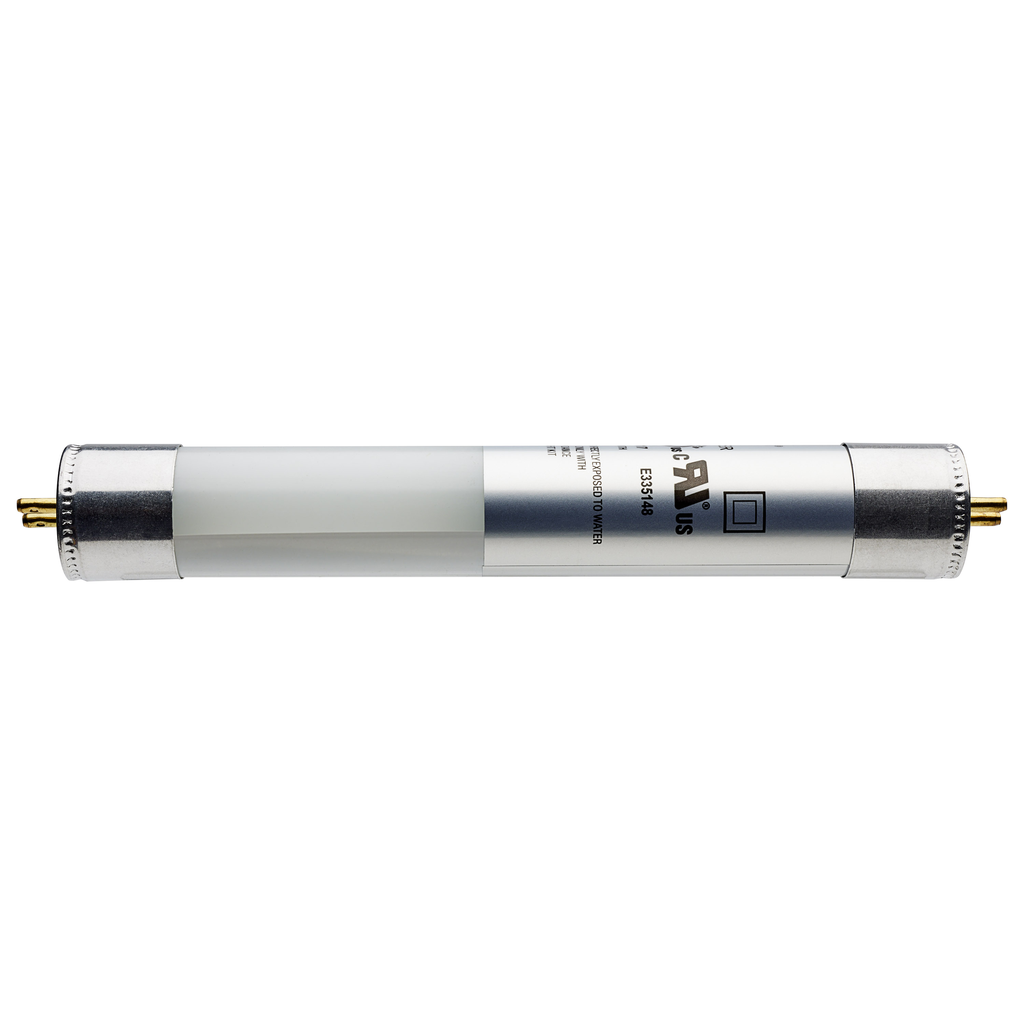

Product image for SATCO S11901 2W/LED/T5/865/BP
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

SATCO S11901 2W/LED/T5/865/BP

Manufacturer: Satco | Catalog # S11901 | North Coast Part # 1716420
$12.55/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Satco's S11901 2 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 6500 kelvins and a lumens count of 150. Providing 50,000 hours of daylight, this bulb is PET coated for shatterproof protection.

Technical Information

Amperage
0.017-0.007 Amp
Average Rated Life
50000 hr
Base
Miniature Bi Pin
Beam Angle
240
Beam Spread
240
Bulb Shape
T5
Color Accuracy
82
Color Rendering Index
82
Color Temperature
6500 K
Correlated Color Temp
6500 K
Dimmable?
No
Incandescent Equivalent
15 W
Lens Color
Frost
Lumens
150 Lumen
Material
Glass
Operating Frequency
50 Hz
Operating Temperature
-13 degrees F
Power Factor
0.9
Technology Type
LED
Type
Lamps
Voltage
120 Volt
Wattage
2 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923119019
Finish
Frosted
GTiN
00045923119019
Product UPC
04592311901
Weight
0.05 lb

Dimensions

Diameter
0.63 Inch
Length
5.91 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 5.91 inches, MOD: 0.83 inches
  • Superior 82 CRI light quality, 150 lumens with a 240 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 2 watt LED replaces 4 watt fluorescent
  • Frost finished linear bulb
  • LED energy efficient fixture
  • 5 Year Limited Warranty
  • Replaces F4T5/D lamps
Ballasting Requirements
  • No ballast or external driver required
Installation Notes
  • Not for use in vapor tight fixtures. Direct wire 120-277V line voltage
  • Double ended wiring
