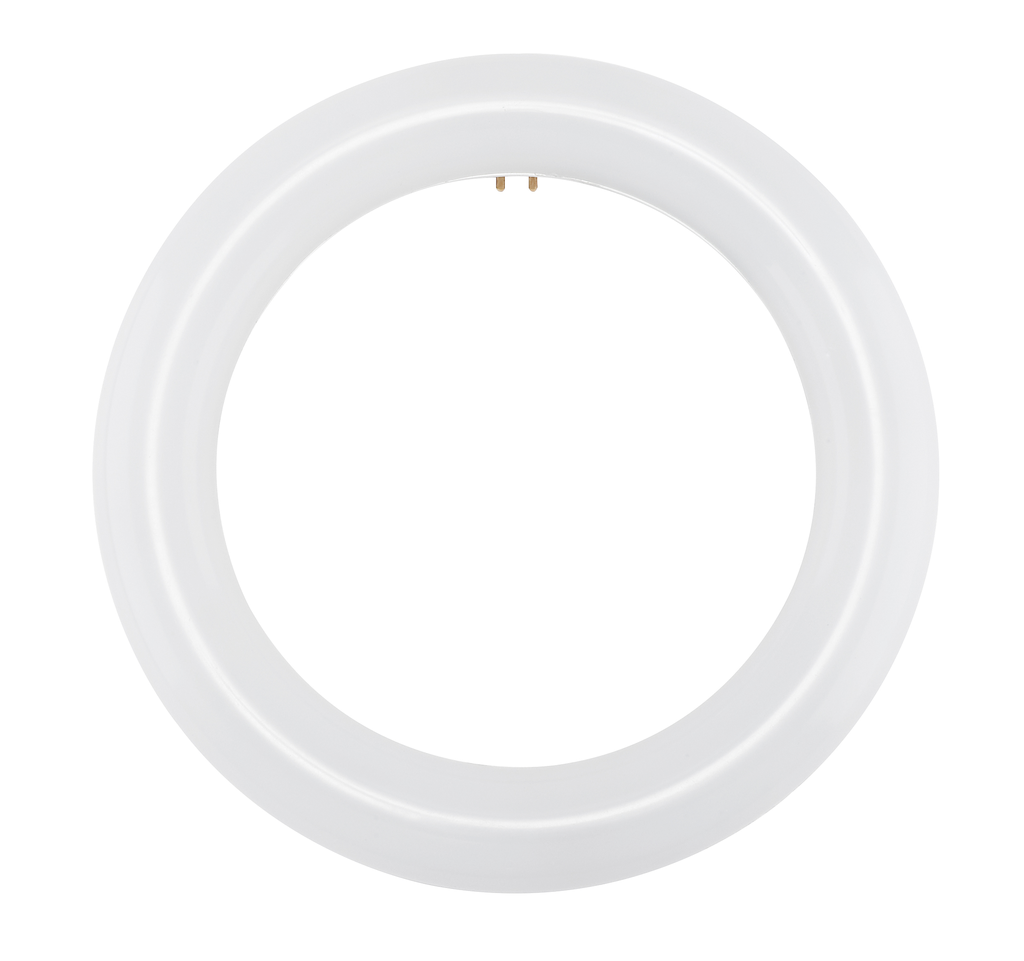

Product image for Satco S16502 LED Circline; 11W T9; 6500K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Satco S16502 LED Circline; 11W T9; 6500K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass

Manufacturer: Satco | Catalog # S16502 | North Coast Part # 1716437
$26.29/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
LED Circline; 11W; T9; 6500K; G10Q Base; 120-277V; Type B; Ballast Bypass

Technical Information

Amperage
0.092-0.040 Amp
Average Rated Life
50000 hr
Base
4-Pin
Beam Angle
135
Beam Spread
135
Bulb Shape
T9
Color Accuracy
80
Color Rendering Index
80
Color Temperature
6500 K
Correlated Color Temp
6500 K
Dimmable?
No
Incandescent Equivalent
50 W
Lens Color
Frost
Lumens
121,000 Lumen
Material
Aluminum
Operating Frequency
50 Hz
Operating Temperature
-13 degrees F
Power Factor
0.9
Technology Type
LED
Type
Premium, Small
Voltage
120 Volt
Wattage
11 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923165023
Finish
Frosted
GTiN
00045923165023
Housing Color
White
Product UPC
04592316502
Weight
0.32 lb

Dimensions

Diameter
1 Inch
Length
8 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 8.00 inches, MOD: 8.00 inches
  • Superior 80 CRI light quality, 1210 lumens, 6500K daylight, with a 135 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 11 watt LED replaces 22 watt fluorescent
  • Frost finished circline plastic bulb with white housing
  • LED energy efficient fixture
  • 5 Year Limited Warranty
  • Replaces 22W fluorescent Circlines
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
