ABB RA18-4 INS NYL RING TERM 22-16

Manufacturer: Thomas & Betts | Catalog # RA18-4 | North Coast Part # 171807
$353.79/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
100 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
100 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet

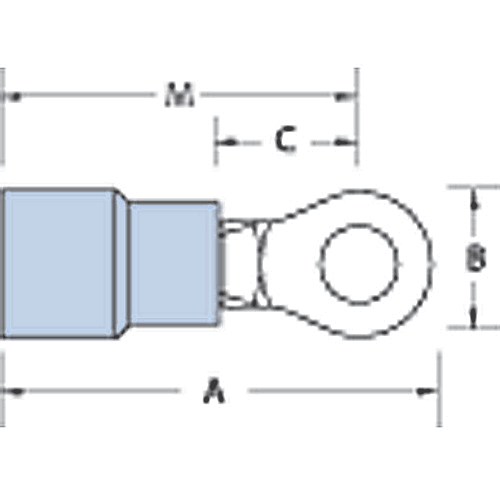

Nylon Insulated Ring Terminal, Length .72 Inches, Width .23 Inches, Maximum Insulation .136, Bolt Hole #4, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#4
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803845
Color
Red
Finish
Electro Tin Plated
GTiN
05414363157557
Product UPC
78621080384

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.1 in
Features
  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Certifications
  • UL
  • CSA
