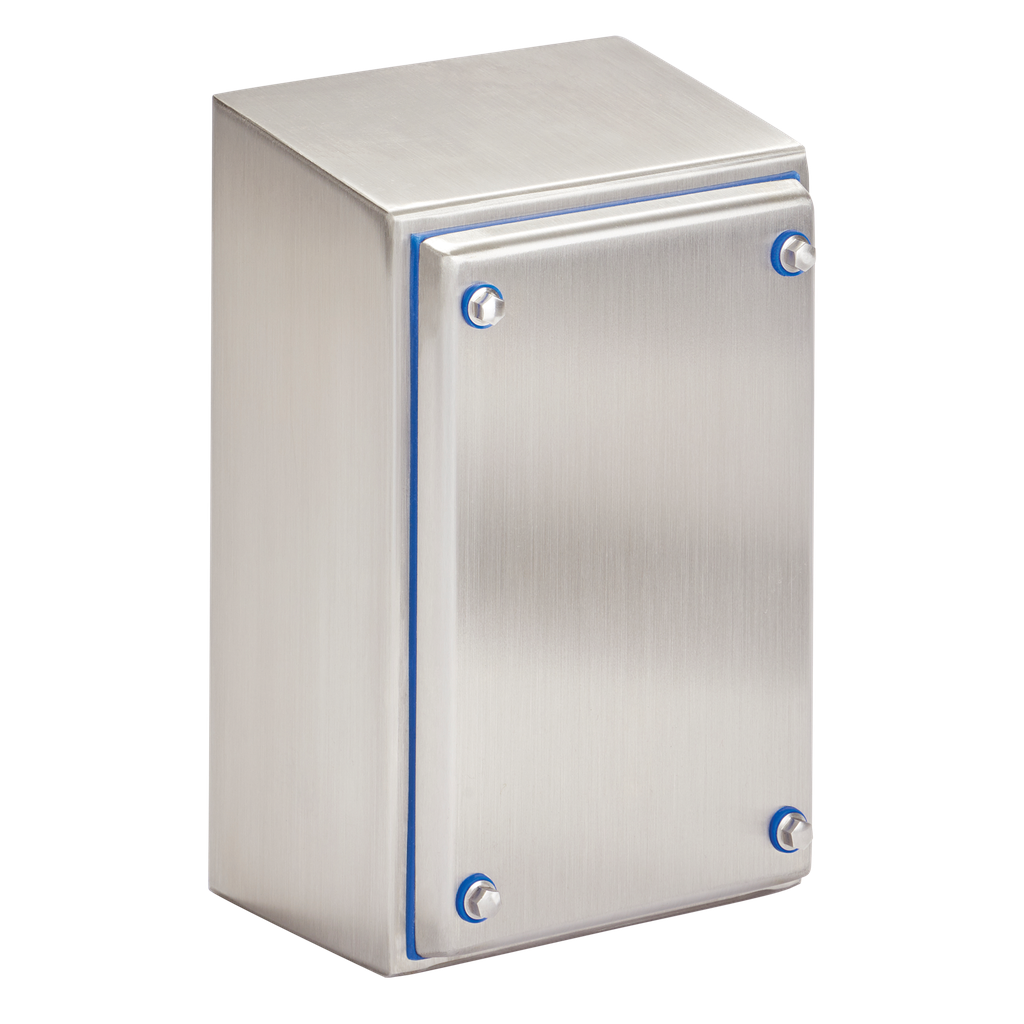

Product image for Hoffman HSDS070404SS HyShed Screw Cover Enclosures, Type 4X, 7.13x4.13x4.00, Stainless Steel 304
Email

Hoffman HSDS070404SS HyShed Screw Cover Enclosures, Type 4X, 7.13x4.13x4.00, Stainless Steel 304

Manufacturer: nVent Hoffman | Catalog # HSDS070404SS | North Coast Part # 1722533
$1,109.97/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Pick Up

at Auburn Opens Friday 5:00am PT
12 available

For Delivery

Order by Friday 4:00pm PT for delivery Monday
Not in local stock *
Check another branch
Specification Sheet
Engineered specially to withstand high pressure, high temperature sanitary washdown cleaning procedures, particularly in Food and Beverage applications that have direct and indirect food contact. The HyShed Screw Cover enclosures feature a 10-degree sloped top to prevent fluids or particulates from pooling and maximize back panel space, an easily replaceable FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption while simplifying maintenance, and a streamlined hygienic design that helps wipe out bacteria harboring catchpoints.

Technical Information

Material
Stainless Steel
Number of Screws
4
Standard
3-A SSI Replacement Parts And System Component Qualification,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File Number,Certificate,DIN 40050-9, IP69K,E503705,E61997,IEC 60529, IP66, IP69,NEMA/EEMAC Type 4, 4X, 12,NSF 169 Special Purpose Food Equipment And Devices,UL 508A Listed; Type 4, 4X, 12; File Number E61997,UL And CUL Classified To IEC 60529, IP66, IP69; File Number

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510305154
Finish
#4 Dairy
GTiN
00783510305154
Product UPC
78351030515
Weight
3.5 lb

Dimensions

Depth
4 Inch
Height
5.4 Inch
Length
9.2 Inch
Thickness
1.98 mm
Width
4.13 in
Features
  • Brushed #4 finish for dairy applications
  • 10-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
  • Door edges are sloped to facilitate runoff
  • Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
  • Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systemsa
  • Screw FDA-grade silicone o-ring gasket maintains strong seal; includes captivation mechanism to keep screws in place and prevent over-torquing
  • Stainless steel crevice-free screw surfaces to reduce bacteria harboring catch points; uses standard tool to open
  • Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available.
  • Seams continuously welded and ground smooth
  • Bonding provision on door and body
  • Furnished hardware kit consists of panel mounting kit and grounding kit
