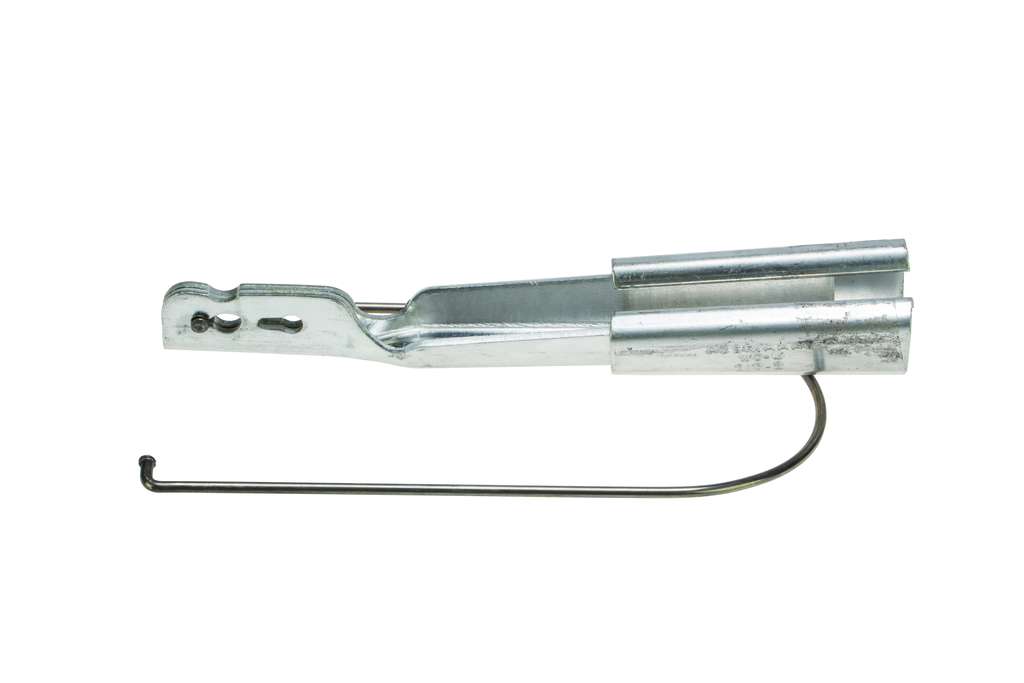

Product image for NSI W20-1 2.375 x 12 Inch 4 to 1/0 AWG ACSR Aluminum Service Wedge Clamp
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

NSI W20-1 2.375 x 12 Inch 4 to 1/0 AWG ACSR Aluminum Service Wedge Clamp

Manufacturer: NSi Industries | Catalog # W20-1 | North Coast Part # 1731349
$31.53/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Aluminum Service Wedge Clamp for 1/0 - 4 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.

Technical Information

Applications
Dead Ending Self Supporting Drop Wire
Cable Size
1/0-4(ACSR) - 2/0 STR-2 SOL(Aluminum)
Material
Aluminum
Max Temperature
194 degrees F
Size
L=12 - Diameter=2.375 IN
Type
Wedge Clamps
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries

General Product Info

12-Digit UPC
662381082817
Color
Aluminum
Finish
Aluminum
GTiN
00662381082817
Product UPC
66238108281

Dimensions

Length
12-1/2 Inch
Warranty Length
1 yr
Width
2.375 in

Certifications and Compliance

Country of Origin
China
Certifications and Standards
  • UL Listed
  • UL 486A
Features
  • For dead-ending self-supporting drop wire
  • Saves conductor - drop wire may be cut to exact length
  • Can be attached to bare neutral in any point in the span
  • Adjustment in drop wire sag are easily made
  • Grips ACSR, AAAC or aluminum conductor
