Hubbell Wiring Devices HBL4550RT 15 Amp 250 Volt 2-Pole 3-Wire L6-15R Duplex Locking Receptacle

Manufacturer: Hubbell / Kellems | Catalog # HBL4550RT | North Coast Part # 1731679
$54.03/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
54 available

For Delivery

Order by Tuesday 4:00pm PT for delivery Wednesday
Not available for delivery*
Check your local branch
Specification Sheet Product Catalog Page Installation Instructions
Locking Devices, Twist-Lock®, Industrial, Duplex Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Ring Terminal Connection, Brown.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Number of Poles
2 Pole
Number of Wires
3
Size

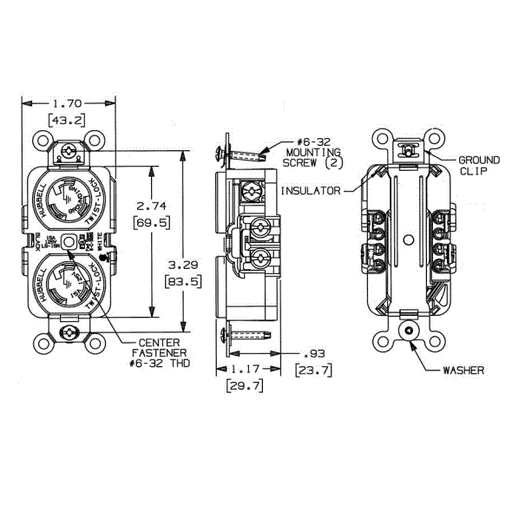

3.29 in x 1.70 in x 1.17 in
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
TC Connection
Ring Terminal
Type
Receptacle
Voltage
250 Volt
Wattage
3750 Watt
Wire Size
18-10 AWG

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock

General Product Info

Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585318547
Product UPC
78358531854
Weight
0.30 lb

Dimensions

Height
1.17 Inch
Length
3.29 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
